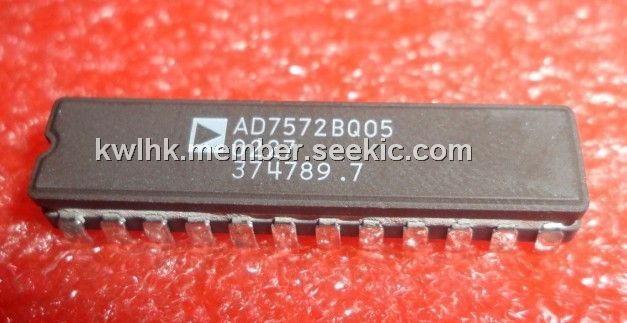

Product Summary

The AD7572BQ05 is a complete, 12-bit ADC that offers high speed performance combined with low, CMOS power levels. The AD7572BQ05 uses an accurate, high speed DAC and comparator in a successive-approximation loop to achive a fast conversion time. An on-chip, buried Zener diode provides a stable reference voltage to give low drift performance over the full temperature range and the specified accuracy is achieved without any user trims. The AD7572BQ05 is fabricated in Analog Devices linear compatible CMOS process.

Parametrics

AD7572BQ05 absolute maximum ratings: (1)VDD to DGND: -0.3V to 7V; (2)VSS to DGND: 0.3V to -17V; (3)AGND to DGND: -0.3V to VDD+0.3V; (4)AIN to AGND: -15 to 15V; (5)Digital Input Voltage to DGND: -0.3V to VDD+0.3V; (6)Digital Output Voltage to DGND: -0.3V to VDD+0.3V; (7)Operating Temperature Range: 0℃ to 70℃; (8)Storage temperature range: -65 to +150℃; (9)Lead Temperature: 300℃; (10)Power dissipation to 75℃: 1000mW; (11)Derates above 75℃ by: 10mW/℃.

Features

AD7572BQ05 features: (1)12-bit Resolution and Accuracy; (2)Fast Conversion time; (3)Complete with On-chip reference; (4)Fast bus Access time: 90ns; (5)Low power: 135mW; (6)Small, 0.3", 24-pin package and 28-Terminal Surface Mount Packages.

Diagrams

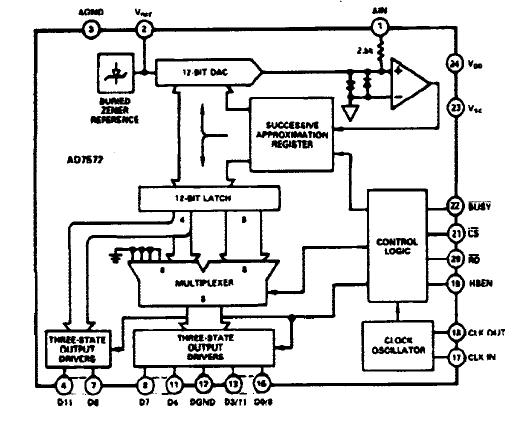

AD7572BQ05 block diagram
