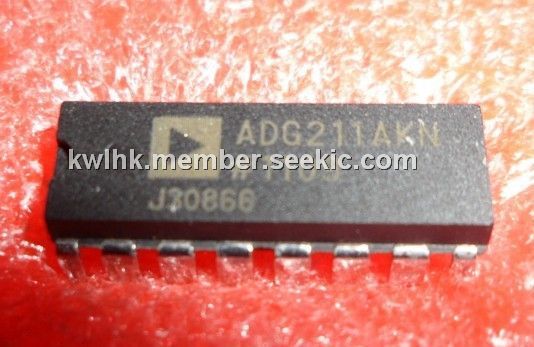

Product Summary
The ADG211AKN is a monolithic CMOS device comprising four independently selectable switches. The ADG211AKN is designed on an enhanced LC2MOS process which gives an increased signal handling capability of ±15V. The ADG211AKN also features high switching speeds and low RON.
Parametrics
ADG211AKN absolute maximum ratings: (1)VDD to VSS: 44V; (2)VDD to GND: 25V; (3)VSS to GND: -25V; (4)VL to GND: -0.3V, 25V; (5)Analog Inputs Voltage at S, D: VSS-0.3V to VDD+0.3V; (6)Continuous current. S or D: 30mA; (7)Package Power Dissipation: 470mW; (8)Operating Temperature Range:–40℃ to +85℃; (9)Storage Temperature Range:–65℃ to +150℃; (10)Lead Temperature (Soldering, 10 sec): +300℃.
Features
ADG211AKN features: (1)44V supply maximum rating; (2)±15V Analog Signal Range; (3)Low RON (115Ω max); (4)Low Leakage (0.5nA typ); (5)Break before make switching; (6)Single Supply Operation Possible; (7)Extended Plastic Temperature range (-40 to +85℃); (8)TTL/CMOS compatible; (9)Avaiable in 16-lead DIP/SOIC and 20-lead PLCC packages; (10)Superior second source.

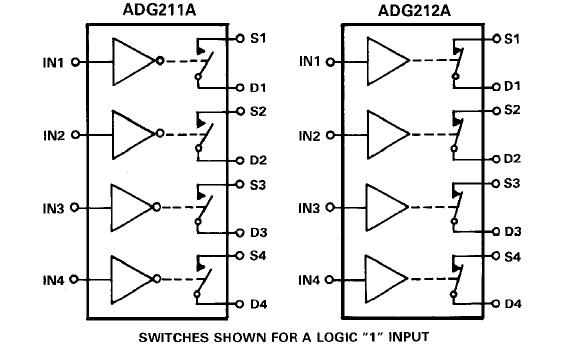

Diagrams
