ADSP-2181KST-133

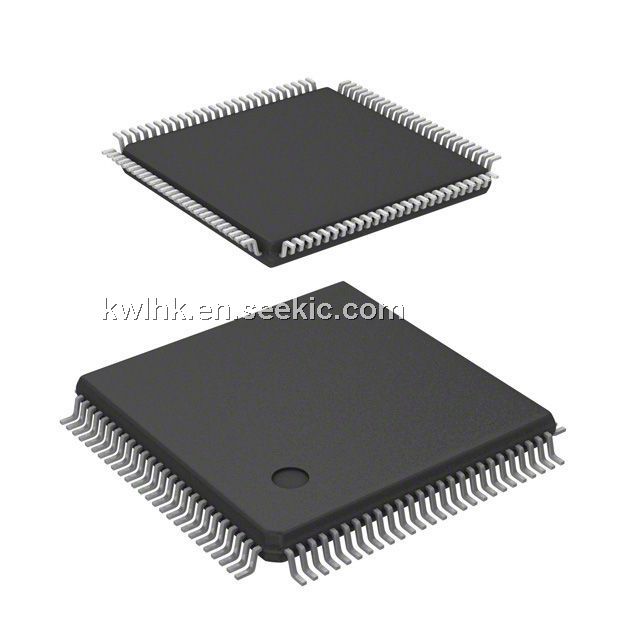

ADSP-2181KST-133, single-chip microcomputer, 20 MHz, 25 ns, 5.0 Volts, QFP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $7.17~7.49 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	7.49 / Piece
500 ~ 1000 :	7.34 / Piece
1000 ~ 1500 :	7.17 / Piece

PartNumber:: ADSP-2181KST-133

Brand:: Analog Devices - AD | Pack: QFP | D/C: 01+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-09-18

From Other Seller

Part Number:ADSP-2181KST-133
US $7.17 - 7.49
Quantity:

piece

Product Summary

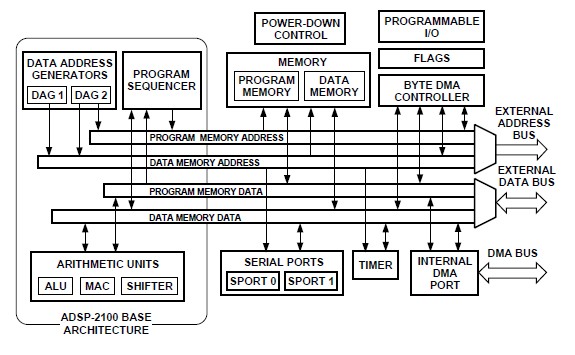

The ADSP-2181KST-133 is a single-chip microcomputer optimized for digital signal processing (DSP) and other high speed numeric processing applications. The ADSP-2181KST-133 combines the ADSP-2100 family base architecture (three computational units, data address generators and a program sequencer) with two serial ports, a 16-bit internal DMA port, a byte DMA port, a programmable timer, Flag I/O, extensive interrupt capabilities, and on-chip program and data memory. The ADSP-2181KST-133 integrates 80K bytes of on-chip memory configured as 16K words (24-bit) of program RAM, and 16K words (16-bit) of data RAM. Power-down circuitry is also provided to meet the low power needs of battery operated portable equipment. The ADSP-2181KST-133 is available in 128-lead TQFP and 128-lead PQFP packages.

Parametrics

ADSP-2181KST-133 absolute maximum ratings: (1)Input Voltage: –0.3V to VDD+0.3V; (2)Output Voltage Swing: –0.3V to VDD+0.3V; (3)Operating Temperature Range (Ambient): –40℃ to +85℃; (4)Storage Temperature Range: –65℃ to +150℃; (5)Lead Temperature (5 sec) TQFP: +280℃; (6)Lead Temperature (5 sec) PQFP: +280℃.

Features

ADSP-2181KST-133 features: (1)25 ns Instruction Cycle Time from 20 MHz Crystal at 5.0 Volts; (2)40 MIPS Sustained Performance; (3)Single-Cycle Instruction Execution; (4)Single-Cycle Context Switch; (5)Low Power Dissipation in Idle Mode; (6)integration; (7)ADSP-2100 Family Code Compatible, with Instruction Set Extensions; (8)Six External Interrupts; (9)13 Programmable Flag Pins Provide Flexible System Signaling; (10)ICE-Port Emulator Interface Supports Debugging in Final Systems; (11)4 MByte Memory Interface for Storage of Data Tables and Program Overlays; (12)8-Bit DMA to Byte Memory for Transparent Program and Data Memory Transfers; (13)I/O Memory Interface with 2048 Locations Supports Parallel Peripherals.
