Product Summary
The AG603-89 is a general-purpose buffer amplifier that offers high dynamic range in a low-cost surface-mount package. At 900 MHz, the AG603-89 typically provides 17.6 dB of gain, +33.5 dBm Output IP3, and +18.5 dBm P1dB. The AG603-89 combines dependable performance with consistent quality to maintain MTBF values exceeding 100 years at mounting temperatures of +85°C and is housed in a SOT-89 industry standard SMT package.
Parametrics
AG603-89 absolute maximum ratings: (1) Operating case temperature: -40 to +85°C; (2) Storage temperature: -40 to +125°C.
Features
AG603-89 features: (1) DC - 2700MHz; (2) +18.5 dBm P1dB at 900MHz; (3) +33.5 dBm OIP3 at 900MHz; (4) 17.6 dB Gain at 900MHz; (5) Single Voltage Supply ; (6) SOT-89 SMT Package; (7) Internally matched to 50Ω.

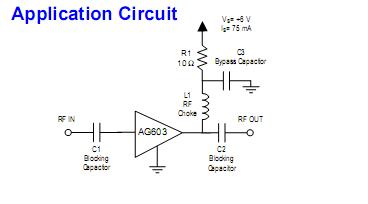

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() AG603-89G |
![]() TriQuint Semiconductor |
![]() RF Amplifier DC-3000MHz 18.5dB Gain@900MHz |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() AG603-89PCB |
![]() TriQuint Semiconductor |
![]() RF Development Tools 700-2400MHz Eval Brd 19.5dBm 18.5dB Gain |
![]() Data Sheet |
![]()
|
|
