Product Summary

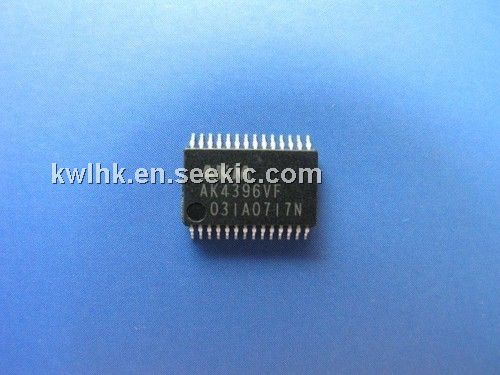

The AK4396VF is a high performance stereo DAC for the 192kHz sampling mode of DVD-Audio including a 24bit digital filter. Using AKM’s multi bit architecture for its modulator the AK4396 delivers a wide dynamic range while preserving linearity for improved THD+N performance. The AK4396VF has full differential SCF outputs, removing the need for AC coupling capacitors and increasing performance for systems with excessive clock jitter.
Parametrics
AK4396VF absolute maximum ratings: (1)Power Supplies: -0.3 to 6.0V; (2)Input Current, Any pin Except Supplies IIN: ±10 mA; (3)Input Voltage VIND: -0.3 to DVDD+0.3 V; (4)Ambient Operating Temperature Ta: -40 to 85 °C; (5)Storage Temperature Tstg: -65 to 150 °C.
Features
AK4396VF features: (1)128x Oversampling; (2)Sampling Rate: 30kHz to 216kHz; (3)24Bit 8x Digital Filter (Slow-roll-off option)Ripple: ±0.005dB, Attenuation: 75dB; (4)High Tolerance to Clock Jitter; (5)Low Distortion Differential Output; (6)DSD data input available; (7)Digital de-emphasis for 32, 44.1, 48kHz sampling; (8)Soft Mute; (9)Digital Attenuator (Linear 256 steps); (10)THD+N:-100dB; (11)DR, S/N: 120dB.

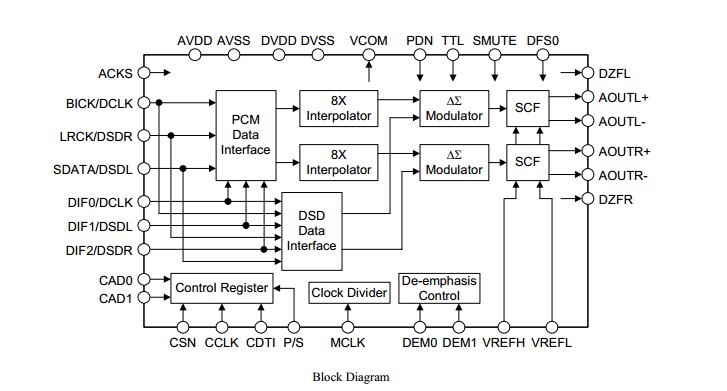

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() AK4396VFP-E2 |
![]() |
![]() IC DAC 24BIT STEREO 28VSOP |
![]() Data Sheet |
![]()
|
|
||||||||||||||
