Product Summary
The AM29DL640G-90PCI is a 64 megabit, 3.0 volt-only flash memory device, organized as 4,194,304 words of 16 bits each or 8,388,608 bytes of 8 bits each. Word mode data appears on DQ15–DQ0; byte mode data appears on DQ7–DQ0. The AM29DL640G-90PCI is designed to be programmed in-system with the standard 3.0 volt VCC supply, and can also be programmed in standard EPROM programmers. The device requires only a single 3.0 volt power supply for both read and write functions. Internally generated and regulated voltages are provided for the program and erase operations. The AM29DL640G-90PCI offers complete compatibility with the JEDEC single-power-supply Flash command set standard. Commands are written to the command register using standard microprocessor write timings. Reading data out of the AM29DL640G-90PCI is similar to reading from other Flash or EPROM devices.
Parametrics
AM29DL640G-90PCI absolute maximum ratings: (1)Operating Temperature (Ambient)TA: 0 to 70 °C; (2)Storage Temperature TSTG: -55 to 150 °C; (3)Voltage on VDD relative to VSS VDD: -1.0 to 3.6 V; (4)Voltage on VDDQ relative to VSS VDDQ: -1.0 to 3.6 V; (5)Voltage on inputs relative to VSS VINPUT: -1.0 to 3.6 V; (6)Voltage on I/O pins relative to VSS VIO: -0.5 to 3.6 V; (7)Output Short Circuit Current IOS: 50 mA.
Features
AM29DL640G-90PCI features: (1)Simultaneous Read/Write operations; (2)Flexible BankTM architecture; (3)Boot Sectors; (4)Manufactured on 0.17 μm process technology; (5)SecSi (Secured Silicon)Sector: Extra 256 Byte sector; (6)Zero Power Operation; (7)Compatible with JEDEC standards; (8)Data Management Software (DMS); (9)Supports Common Flash Memory Interface (CFI); (10)Erase Suspend/Erase Resume; (11)Data# Polling and Toggle Bits; (12)Unlock Bypass Program command.

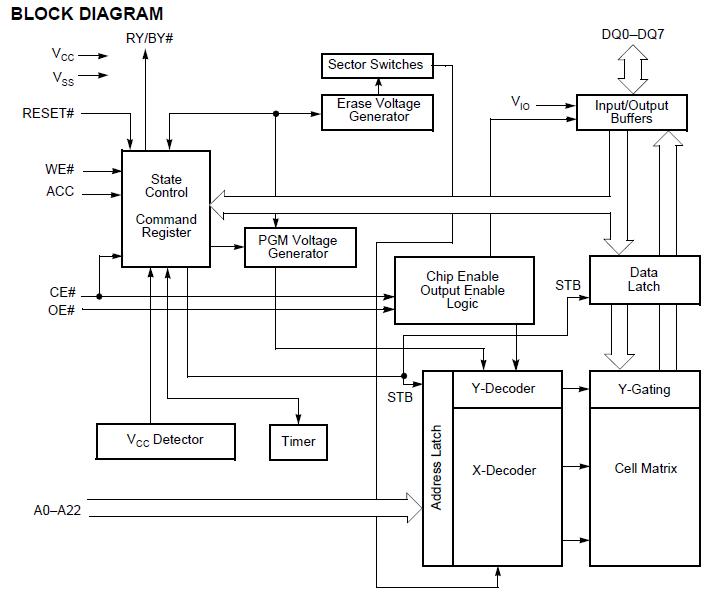

Diagrams
