Product Summary
The AM29F002NBT-120JC is a 2 Mbit, 5.0 volt-only Flash memory organized as 262,144 bytes. The data appears on DQ7–DQ0. The device is offered in 32-pin PLCC, 32-pin TSOP, and 32-pin PDIP packages. It is designed to be programmed in-system with the standard system 5.0 volt VCC supply. No VPP is required for write or erase operations. The AM29F002NBT-120JC can also be programmed in standard EPROM programmers.The device is entirely command set compatible with the JEDEC single-power-supply Flash standard. Commands are written to the command register using standard microprocessor write timings. Register contents serve as input to an internal state-machine that controls the erase and programming circuitry. Write cycles also internally latch addresses and data needed for the programming and erase operations. Reading data out of the device is similar to reading from other Flash or EPROM devices.
Parametrics
AM29F002NBT-120JC absolute maximum ratings: (1)Storage Temperature, Plastic Packages: –65℃ to +150℃; (2)Ambient Temperature with Power Applied: –55℃ to +125℃; (3)Voltage with Respect to Ground: VCC: –2.0 V to +7.0 V; A9, OE#, and RESET#: –2.0 V to +12.5 V; All other pins : –0.5 V to +7.0 V; (4)Output Short Circuit Current: 200 mA.
Features
AM29F002NBT-120JC features: (1)Single power supply operation: 5.0 Volt-only operation for read, erase, and program operations; Minimizes system level requirements; (2)Manufactured on 0.32 μm process technology: Compatible with 0.5 μm Am29F002 device; (3)High performance: Access times as fast as 55 ns; (4)Low power consumption (typical values at 5 MHz): 1 μA standby mode current; 20 mA read current; 30 mA program/erase current; (5)Compatibility with JEDEC standards: Pinout and software compatible with single-power supply Flash; Superior inadvertent write protection; (6)Data# Polling and toggle bits: Provides a software method of detecting program or erase operation completion; (7)Erase Suspend/Erase Resume: Suspends an erase operation to read data from, or program data to, a sector that is not being erased, then resumes the erase operation.

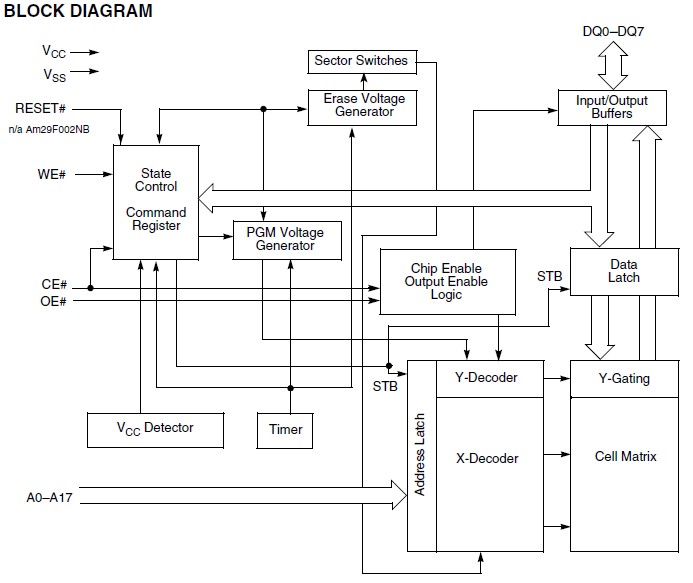

Diagrams
