Product Summary
The AM29F016D-70EC is a 16 Mbit, 5.0 volt-only Flash memory organized as 2,097,152 bytes. The 8 bits of data appear on DQ0–DQ7. The AM29F016D-70EC is offered in 48-pin TSOP, 40-pin TSOP, and 44-pin SO packages. The device is also available in Known Good Die (KGD) form. For more information, refer to publication number 21551. This device is designed to be programmed in-system with the standard system 5.0 volt VCC supply. A 12.0 volt VPP is not required for program or erase operations. The AM29F016D-70EC can also be programmed in standard EPROM programmers.
Parametrics
AM29F016D-70EC absolute maximum ratings: (1)Storage Temperature, Plastic Packages: –65 to +125℃; (2)Ambient Temperature with Power Applied: –55 to +125℃; (3)Voltage with Respect to Ground, VCC:–2.0 V to 7.0 V; A9, OE#, RESET#: –2.0 V to 12.5 V; All other pins: –2.0 V to 7.0 V; (4)Output Short Circuit Current: 200 mA.
Features
AM29F016D-70EC features: (1)5.0 V ± 10%, single power supply operation: Minimizes system level power requirements; (2)Manufactured on 0.23 μm process technology: Compatible with 0.5 μm Am29F016 and 0.32 μm Am29F016B devices; (3)High performance: Access times as fast as 70 ns; (4)Low power consumption: 25 mA typical active read current; 30 mA typical program/erase current; (5)1 μA typical standby current (standard access time to active mode); (6)32 uniform sectors of 64 Kbytes each; (7)Any combination of sectors can be erased; (8)Supports full chip erase; (9)Group sector protection:; (10)A hardware method of locking sector groups to prevent any program or erase operations within that sector groupTemporary Sector Group Unprotect allows code changes in previously locked sectors.

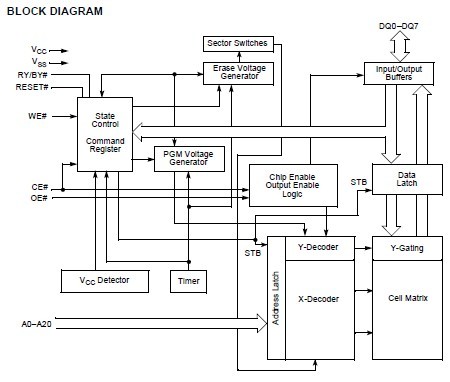

Diagrams
