Product Summary
The at28c16-15jc is a low-power, high-performance Electrically Erasable and Programmable Read Only Memory with easy to use features. The at28c16-15jc is a 16K memory organized as 2,048 words by 8 bits. The at28c16-15jc is manufactured with Atmel reliable nonvolatile CMOS technology. The at28c16-15jc is accessed like a static RAM for the read or write cycles without the need of external components. When the at28c16-15jc is deselected the standby current is less than 100μA.
Parametrics
at28c16-15jc absolute maximum ratings: (1) Temperature Under Bias: -55 to +125°C; (2) Storage Temperature: -65 to +150°C; (3) All Input Voltages (including NC Pins) with Respect to Ground: -0.6 to +6.25V; (4) All Output Voltages with Respect to Ground: -0.6 to Vcc +0.6V; (5) Voltage on OE and A9 with Respect to Ground: -0.6 to +13.5V.
Features
at28c16-15jc features: (1) Fast Read Access Time - 150 ns; (2) Fast Byte Write - 200μs or 1 ms; (3) Self-Timed Byte Write Cycle; (4) Direct Microprocessor Control; (5) Low Power: 30mA Active Current, 100μA CMOS Standby Current; (6) 5V±10% Supply; (7) CMOS & TTL Compatible Inputs and Outputs; (8) JEDEC Approved Byte Wide Pinout; (9) Commercial and Industrial Temperature Ranges.

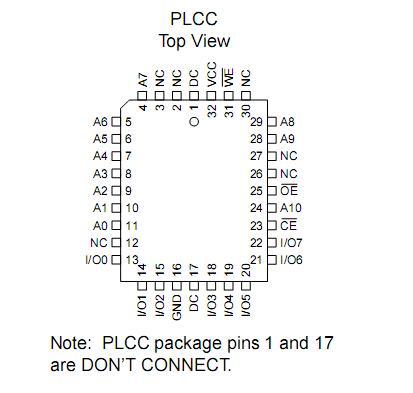

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 AT28C16-15JC |
Atmel |
EEPROM 2kx8 150ns |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
 |
AT28BV16 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
AT28BV16-25JC |
Atmel |
EEPROM 16k bit |
Data Sheet |
Negotiable |
|
||||
 |
AT28BV16-25JI |
Atmel |
IC EEPROM 16K 2.7V 32PLCC |
Data Sheet |
Negotiable |
|
||||
 |
AT28BV16-25PC |
|
IC EEPROM 16KBIT 250NS 24DIP |
Data Sheet |
Negotiable |
|
||||
 |
AT28BV16-25PI |
Atmel |
IC EEPROM 16K 2.7V 24DIP |
Data Sheet |
Negotiable |
|
||||
|
AT28BV16-25SC |
Atmel |
EEPROM 16k bit |
Data Sheet |
Negotiable |
|
||||
