Product Summary
The ATF20V8B-15PC is a high-performance CMOS (electrically-erasable) programmable logic device (PLD). The ATF20V8B-15PC utilizes Atmel’s proven electrically-erasable Flash memory technology. Speeds down to 7.5 ns and power dissipation as low as 10 mA are offered. All speed ranges are specified over the full 5V ± 10% range for industrial temperature ranges, and 5V ± 5% for commercial temperature ranges. The ATF20V8B-15PC incorporates a superset of the generic architectures, which allows direct replacement of the 20R8 family and most 24-pin combinatorial PLDs. Eight outputs are each allocated eight product terms.
Parametrics
ATF20V8B-15PC absolute maximum ratings: (1)Temperature Under Bias:-55℃ to +125℃; (2)Storage Temperature:-65℃ to +150℃; (3)Voltage on Any Pin with Respect to Ground:-2.0V to +7.0V; (4)Voltage on Input Pins with Respect to Ground During Programming:-2.0V to +14.0V; (5)Programming Voltage with Respect to Ground:-2.0V to +14.0V.
Features
ATF20V8B-15PC features: (1)Industry-standard Architecture:Emulates Many 24-pin PALs, Low-cost Easy-to-use Software Tools ; (2)High-speed Electrically-erasable Programmable Logic Devices:7.5 ns Maximum Pin-to-pin Delay ; (3)Several Power Saving Options ; (4)CMOS and TTL Compatible Inputs and Outputs; (5)Input and I/O Pull-up Resistors; (6)Advanced Flash Technology:Reprogrammable, 100% Tested ; (7)High-reliability CMOS Process:20 Year Data Retention, 100 Erase/Write Cycles, 2,000V ESD Protection,200 mA Latchup Immunity ; (8)Commercial and Industrial Temperature Ranges ; (9)Dual-in-line and Surface Mount Packages in Standard Pinouts; (10)PCI-Compliant; (11)Green Package Options (Pb/Halide-free/RoHS Complant) Available.

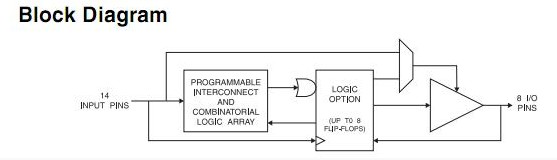

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 ATF20V8B-15PC |
Atmel |
SPLD - Simple Programmable Logic Devices 300 GATE 10NS WAFER - 15NS |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
 |
ATF20V8B |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
ATF20V8B-10JC |
Atmel |
SPLD - Simple Programmable Logic Devices 300 GATE 10NS WAFER - 10NS |
Data Sheet |
Negotiable |
|
||||
|
ATF20V8B-10JI |
Atmel |
SPLD - Simple Programmable Logic Devices 300 GATE EPLD 10NS IND TEMP |
Data Sheet |
Negotiable |
|
||||
|
ATF20V8B-10JU |
Atmel |
SPLD - Simple Programmable Logic Devices 300 GATE 10NS WAFER - 10NS |
Data Sheet |
Negotiable |
|
||||
|
ATF20V8B-10PC |
Atmel |
SPLD - Simple Programmable Logic Devices 300 GATE 10NS WAFER - 10NS |
Data Sheet |
Negotiable |
|
||||
|
ATF20V8B-10PI |
Atmel |
SPLD - Simple Programmable Logic Devices 300 GATE EPLD 10NS IND TEMP |
Data Sheet |
Negotiable |
|
||||
