Product Summary
The BTS425L1 is a smart highside power switch. Applications of the BTS425L1 include: compatible power switch with diagnostic feedback for 12 V DC grounded loads, resistive and lamp loads.
Parametrics
BTS425L1 absolute maximum ratings: (1)Supply voltage Vbb: 43V; (2)Supply voltage for full short circuit protection TjStart=-40 to 150°C : 24V; (3)Load dump protection VLoadDump=UA+VS, UA=13.5V,R1=2Ω, RL=2Ω, RL=1.7Ω, td=200ms, IN=low or high: Vload dump: 60V; (4)Load current IL: self-limited; (5)Operating temperature range: -40 to +150°C; (6)Electrostatic discharge capability (ESD) IN: VESD 1.0kV; (7)Input voltage (DC) VIN: -10 to +6V; (8)Current through input pin (DC) Iin: ±2.0mA.
Features
BTS425L1 features: (1)Overload protection; (2)Current limitation; (3)Short circuit protection; (4)Thermal shutdown; (5)Overvoltage protection (including load dump); (6)Undervoltage and overvoltage shutdown with auto-restart and hysteresis; (7)Open drain diagnostic output; (8)Open load detection in ON-state; (9)CMOS compatible input; (10)Electrostatic discharge (ESD) protection.
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

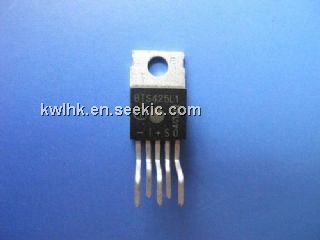

![]() BTS425L1 |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||||
