Product Summary

The BTS716G is a smart highside power switch. It can be used in (1)most suitable for loads with high inrush currents, so as lamps; (2)all types of resistive, inductive and capacitive loads; (3)uC compatible high-side power switch with diagnostic feedback for 12 V and 24 V grounded loads and (4)replaces electromechanical relays and discrete circuits.

Parametrics

BTS716G absolute maximum ratings: (1)Supply voltage: 43 V; (2)supply voltage for full short circuit protection: 36 V; (3)Load current: self-limited; (4)Operating temperature range: -40°C to +150°C; (5)Storage temperature range: -55°C to +150°C; (6)Power dissipation (DC): 3.6 W; (7)input voltage DC: -10 to +16 V; (8)current through input pin DC: +/-0.3 A.

Features

BTS716G features: (1)Overload protection; (2)Current limitation; (3)Short-circuit protection; (4)Thermal shutdown; (5)Overvoltage protection (including load dump); (6)Fast demagnetization of inductive loads; (7)Reverse battery protection); (8)Undervoltage and overvoltage shutdown with auto-restart and hysteresis; (9)Open drain diagnostic output; (10)maximum current internally limitedOpen load detection in ON-state; (11)Loss of GND and loss of Vbb protection; (12)AEC qualified; (13)output current 0625A per channel.

Diagrams

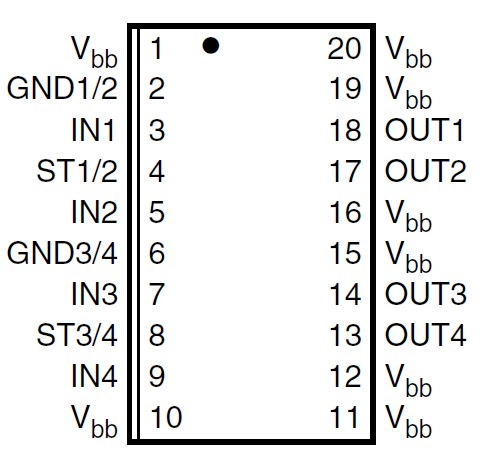

BTS716G pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

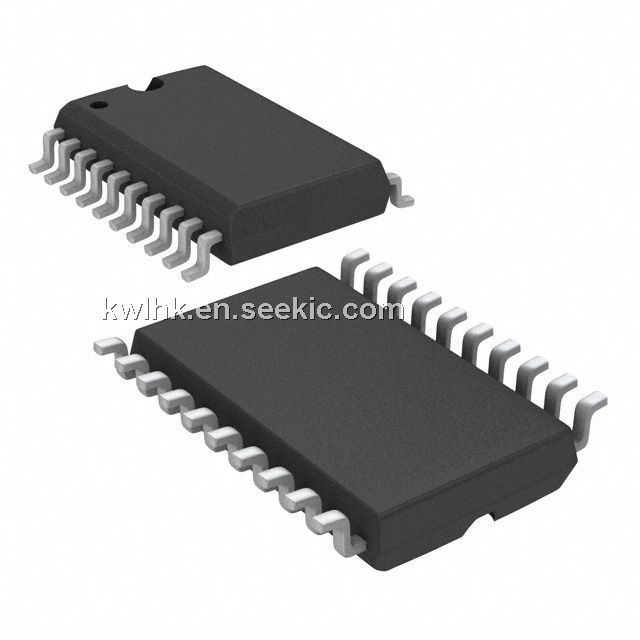

BTS716G
BTS716G
Infineon Technologies
Power Switch ICs - POE / LAN Smart High Side PROFET Quad
Data Sheet
0-490: $1.91
490-500: $1.54
500-1000: $1.30
1000-2000: $1.24

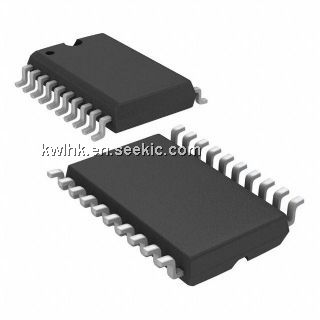

BTS716GB
BTS716GB
Infineon Technologies
Power Switch ICs - POE / LAN SMART HI SIDE PWR SWITCH INDUSTRY APP
Data Sheet
0-490: $2.02
490-500: $1.64
500-1000: $1.38
1000-2000: $1.31
BTS716GT
BTS716GT

SWITCH 4-CHAN HIGH SIDE P-DSO20
Data Sheet
Negotiable
