Product Summary
The CA3039 consists of six ultra-fast, low capacitance diodes on a common monolithic substrate. Integrated circuit construction assures excellent static and dynamic matching of the diodes, making the array extremely useful for a wide variety of applications in communication and switching systems. It is ideal for: (1)ultra-fast low capacitance matched diodes for applications in communications and switching systems; (2)balanced modulators or demodulators; (3)ring modulators; (4)high speed diode gates; (5)analog switches.
Parametrics
CA3039 absolute maximum ratings: (1)inverse voltage (piv)for: d1 - d5: 5v; d6: 0.5v; (2)diode-to-substrate voltage (vdi)for d1 - d5: 20v, -1v; (terminal 1, 4, 5, 8 or 12 to terminal 10); (3)dc forward current (if): 25ma; (4)recurrent forward current (if): 100ma; (5)forward surge current (if(surge)): 100ma.
Features
CA3039 features: (1)six matched diodes on a common substrate; (2)excellent reverse recovery time: 1ns (typ); (3)vf match: 5mv (max); (4)low capacitance: cd = 0.65pf (typ)at vr = -2v.

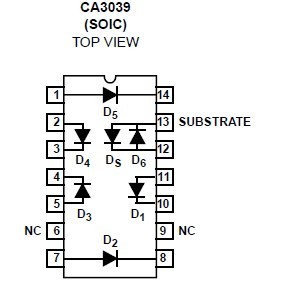

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() CA3039 |
![]() Intersil |
![]() DIODE ARRAY- 6 MATCH. UF,LOW CAP |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
