Product Summary

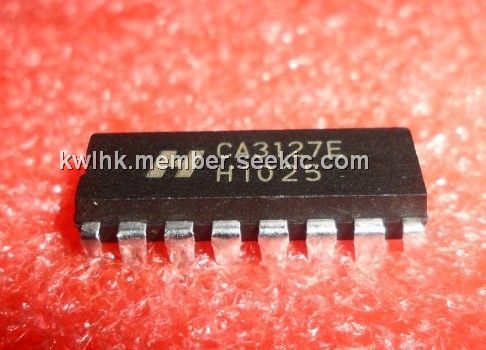

The CA3127E is a high frequency NPN transistor array. The CA3127E consists of five general purpose silicon NPN transistors on a common monolithic substrate. Each of the completely isolated transistors exhibits low 1/f noise and a value of fT in excess of 1GHz, making the CA3127E useful from DC to 500MHz. Access is provided to each of the terminals for the individual transistors and a separate substrate connection has been provided for maximum application flexibility. The monolithic construction of the CA3127E provides close electrical and thermal matching of the five transistors. The applications of the CA3127E include VHF Amplifiers, Multifunction Combinations - RF/Mixer/Oscillator, Sense Amplifiers, Synchronous Detectors, VHF Mixers, IF Converter, IF Amplifiers, Synthesizers, Cascade Amplifiers.

Parametrics

CA3127E absolute maximum ratings: (1)Collector-to-Emitter Voltage, VCEO: 15V; (2)Collector-to-Base Voltage, VCBO: 20V; (3)Collector-to-Substrate Voltage, VCIO: 20V; (4)Collector Current, IC: 20mA; (5)Temperature Range: -55℃ to 125℃.

Features

CA3127E features: (1)Gain Bandwidth Product (fT): >1GHz; (2)Power Gain: 30dB (Typ) at 100MHz; (3)Noise Figure: 3.5dB (Typ) at 100MHz; (4)Five Independent Transistors on a Common Substrate.

Diagrams

CA3127E block diagram
