Product Summary
The COPCF888-ACS is an 8-bit CMOS microcontroller with A/D converter.
Parametrics
COPCF888-ACS absolute maximum ratings: (1)Supply Voltage (VCC): 7V; (2)Voltage at Any Pin: -0.3V to VCC a 0.3V; (3)Total Current into VCC Pin (Source): 100 mA; (4)Total Current out of GND Pin (Sink): 110 mA; (5)Storage Temperature Range: -65°C to +140°C.
Features
COPCF888-ACS features: (1)A/D converter (8-bit, 8-channel, with prescaler and both differential and single ended modes); (2)Two 16-bit timers, each with two 16-bit registers supporting: Processor Independent PWM mode, External Event counter mode, Input Capture mode; (3)4 kbytes of on-chip ROM; (4)128 bytes of on-chip RAM; (5)Idle Timer; (6)Multi-Input Wake Up (MIWU) with optional interrupts (8); (7)WATCHDOGTM and Clock Monitor logic; (8)MICROWIRE/PLUSTM serial I/O.

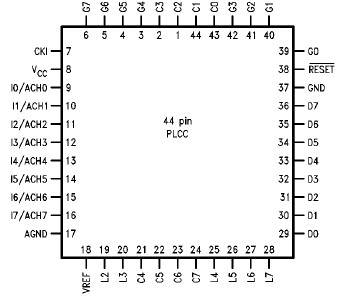

Diagrams
