Product Summary

The CY2210PVC-2 is a 133-MHz spread spectrum clock synthesizer/driver with AGP, USB, and DRCG support.

Parametrics

CY2210PVC-2 absolute maximum ratings: (1)Supply Voltage: –0.5 to +7.0V; (2)Input Voltage: –0.5V to VDD+0.5; (3)Storage Temperature (Non-Condensing): –65°C to +150°C; (4)Junction Temperature: +150°C; (5)Package Power Dissipation: 1W; (6)Static Discharge Voltage (per MIL-STD-883, Method 3015): >2000V.

Features

CY2210PVC-2 features: (1)Mixed 2.5V and 3.3V Operation; (2)Compliant to Intel CK133 (CY2210-3)& CK133W (CY2210-2)synthesizer and driver specification; (3)Power-down features Supports mobile systems; (4)Three Select inputs Supports up to eight CPU clock frequencies; (5)Low-skew and low-jitter outputs Meets tight system timing requirements at high frequency; (6)OE and Test Mode support Enables ATE and bed of nails testing; (7)56-pin SSOP package; (8)Four CPU clocks, up to 133 MHz; (9)Eight synchronous PCI clocks, 1 free-running; (10)Two CPU/2 clocks, at one-half the CPU frequency; (11)Four AGP clocks at 66 MHz.

Diagrams

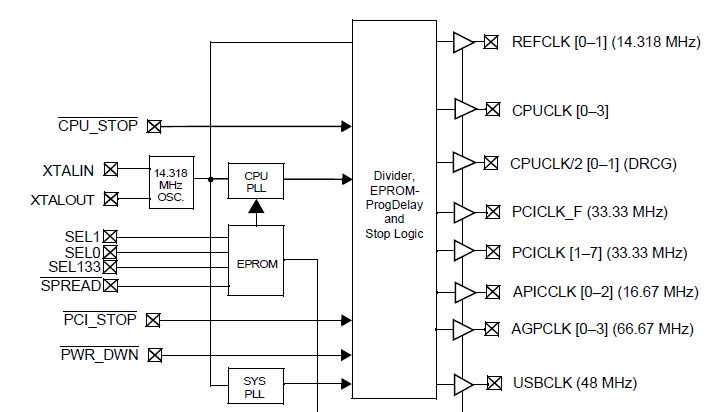

CY2210PVC-2 pin connection
