Product Summary
The CY7C146-25JC is a 2K × 8 dual-port static RAM. The CY7C146-25JC provided to permit independent access to any location inmemory. The CY7C146-25JC can be utilized as either astandalone 8-bit dual-port static RAM or as a MASTERdual-port RAM in conjunction with the CY7C146-25JC dual-port device in systems requiring 16-bit or greaterword widths. The CY7C146-25JC is the solution to applications requiring sharedor buffered data such as cache memory for DSP, bit-slice, ormultiprocessor designs.
Parametrics
CY7C146-25JC absolute maximum ratings: (1)Storage Temperature: –65 to +150 ℃; (2)Ambient Temperature with Power Applied: –55 to +125 ℃; (3)Supply Voltage on VCC to Relative GND[2]: –0.5 V to +7.0 V; (4)DC Voltage Applied to Outputs[2] in High Z State: –0.5 V to 7.0 V; (5)DC Input Voltage[2]: –0.5 V to 7.0 V; (6)Current into Outputs (LOW): 20 mA; (7)Static Discharge Voltage: >2001V; (8)Latch-Up Current: >200 mA.
Features
CY7C146-25JC features: (1)True Dual-Ported memory cells which allow simulta-neous reads of the same memory location; (2)2K × 8 organization; (3)0.65-micron CMOS for optimum speed/power; (4)High-speed access: 15 ns; (5)Low operating power: ICC = 110 mA (max.); (6)Fully asynchronous operation; (7)Automatic power-down; (8)Master CY7C146-25JC easily expands data buswidth to 16 or more bits using slave CY7C146-25JC; (9)BUSY output flag on CY7C146-25JC; BUSY inputon CY7C146-25JC; (10)INT flag for port-to-port communication; (11)Available in 48-pin DIP, 52-pin PLCC and52-pin TQFP; (12)Pb-Free packages available.

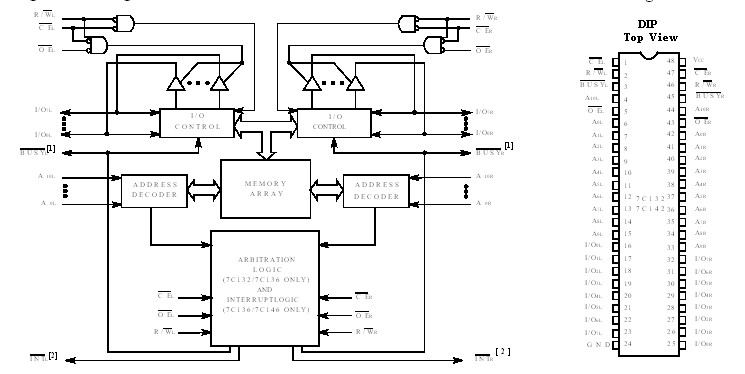

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() CY7C146-25JC |
![]() |
![]() IC SRAM 16KBIT 25NS 52PLCC |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
