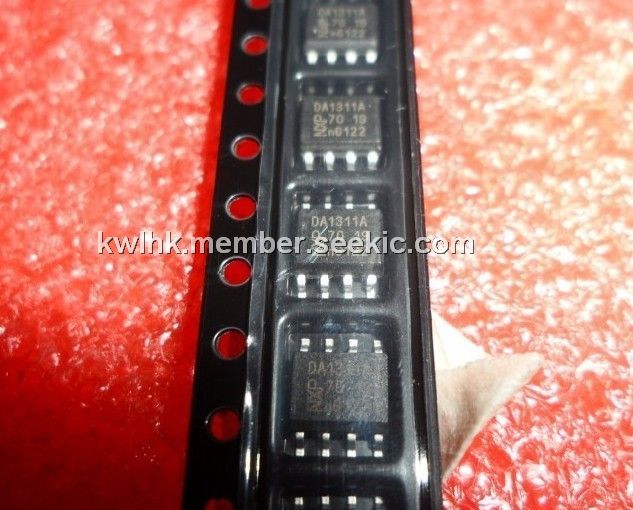

Product Summary

The DA1311A is a voltage-driven digital-to-analog converter and is new generation of DAC devices which embodies the innovative technique of Continuous Calibration (CC). The largest bit-currents of the DA1311A are repeatedly generated by one single current reference source. This duplication is based upon an internal charge storage principle which has an accuracy insensitive to ageing, temperature matching and process variations. The DA1311A is fabricated in a 1.0 μm CMOS process and features an extremely low-power dissipation, small package size and easy application.

Parametrics

DA1311A absolute maximum ratings: (1)VDD supply voltage: 6.0 V; (2)Tstg storage temperature: -55 to +150 ℃; (3)TXTAL maximum crystal temperature: +150 ℃; (4)Tamb operating ambient temperature: -40 to +85 ℃; (5)Ves electrostatic handling: -2000 to +2000 V.

Features

DA1311A features: (1)Voltage output; (2)Space saving packages SO8 or DIP8; (3)Low power consumption; (4)Wide dynamic range (16-bit resolution); (5)Continuous Calibration (CC) concept; (6)Fast settling time permits 2, 4 and 8 × oversampling (serial input) or double-speed operation at 4 × oversampling; (7)Internal bias current ensures maximum dynamic range; (8)Wide operating temperature range (-40 ℃ to +85 ℃); (9)Compatible with most current Japanese input formats: time multiplexed, two’s complement, TTL; (10)No zero-crossing distortion; (11)Cost efficient.

Diagrams

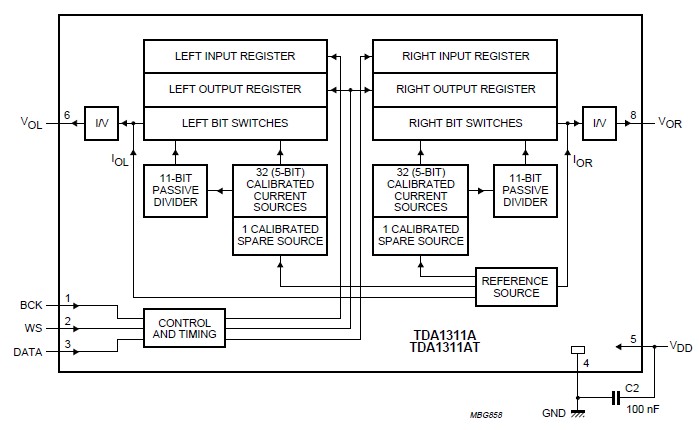

DA1311A diagram
