DS1706S

DS1706S, microprocessor, 7.0V, 1.0 A, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	3.00 / Piece
500 ~ 1000 :	2.00 / Piece
1000 ~ 1500 :	1.00 / Piece

PartNumber:: DS1706S

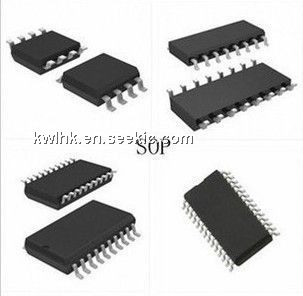

Brand:: DALLAS - DALLAS | Pack: SOP | D/C: 05+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-15

From Other Seller

Part Number:DS1706S
US $1.00 - 3.00
Quantity:

piece

Product Summary

The DS1706S is a microprocessor, for MicroMonitor monitors three vital conditions: power supply, software execution, and external override. A precision temperature compensated reference and comparator circuit monitor the status of VCC at the device and at an upstream point for maximum protection. When the sense input detects an out-of-tolerance condition, a non-maskable interrupt is generated. As the voltage at the device degrades, an internal power fail signal is generated which forcesthe reset to an active state. When VCC returns to an in-tolerance condition, the reset signal is kept in the active state for a minimum of 130 ms to allow the power supply and processor to stabilize.

Parametrics

DS1706S absolute maximum ratings: (1)Voltage Range on VCC Pin Relative to Ground: -0.5V to +7.0V; (2)Voltage Range on I/O Relative to Ground: -0.5V to (VCC + 0.5V); (3)Operating Temperature Range: -40°C to +85°C; (4)Storage Temperature Range: -55°C to +125°C; (5)Lead Temperature (soldering, 10s): +260°C; (6)Soldering Temperature (reflow)Lead(Pb)-free: +260°C.

Features

DS1706S features: (1)Halts and restarts an out-of-control microprocessor; (2)Holds microprocessor in check during power transients; (3)Automatically restarts microprocessor after power failure; (4)Monitors pushbutton for external override; (5)Accurate 5%, 10% or 20% resets for 3.3V systems and 5% or 10% resets for 5.0V systems; (6)Eliminates the need for discrete components; (7)3.3V 20% tolerance for use with 3.0V systems; (8)Pin-compatible with the MAXIM MAX705/MAX706 in 8-pin DIP, 8-pin SOIC, and m-SOP; (9)8-pin DIP, 8-pin SOIC and 8-pin m-SOP packages; (10)Industrial temperature range -40°C to +85°C.
