Product Summary
The HM51W4400BTT-7 is a CMOS dynamic RAM organized 16,777,216-word ×1-bit. The HM5116100S-6T employs the most advanced 0.5μm CMOS technology for high performance and low power. The HM51W4400BTT-7 offers Fast Page Mode as a high speed access mode. The HM5116100S-6T is packaged in 26-pin plastic SOJ.
Parametrics
HM51W4400BTT-7 absolute maximum ratings: (1) Voltage on any pin relative to Vss VT: -1 to +7V; (2) Supply voltage relative to Vss Vcc: -1 to 7V; (3) Short circuit output current IOUT: 50mA; (4) Power dissipation Pt: 1.0W; (5) Operating temperature Topr: 0 to 70°C; (6) Storage temperature Tstg: -55 to +125°C.
Features
HM51W4400BTT-7 features: (1) Single 5 V (±10%) ; (2) Access time: 60ns/70ns (max) ; (3) Fast page mode capability; (4) Refresh cycles; (5) 3 variations of refresh; (6) 16-bit parallel test mode.

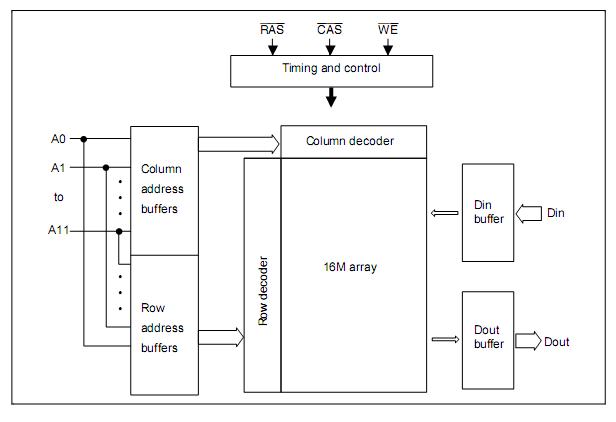

Diagrams
