Product Summary

The HY62256ALT1-70 is a high-speed, low power and 32,786 x 8-bits CMOS Static Random Access Memory fabricated using Hyundai’s high performance CMOS process technology. The HY62256ALT1-70 has a data retention mode that guarantees data to remain valid at the minimum power supply voltage of 2.0 volt.

Parametrics

HY62256ALT1-70 absolute maximum ratings: (1)VCC, VIN,VOUT, Power Supply Input/Output Voltage: -0.5 to 7.0 V; (2)TA, Operating Temperature: -40 to 85℃; (3)TSTG, Storage Temperature: -65 to 150℃; (4)PD, Power Dissipation: 1.0 W; (5)IOUT, Data OutPut Current: 50 mA; (6)TSOLDER, Lead Soldering Temperature & Time: 260 /10℃/ sec.

Features

HY62256ALT1-70 features: (1)Fully static operation and Tri-state outputs; (2)TTL compatible inputs and outputs; (3)Low power consumption -2.0V(min.) data; (4)retention; (5)Standard pin configuration, -28 pin 600 mil PDIP; -28 pin 330 mil SOP; -28 pin 8x13.4 mm TSOP-1 (standard and reversed).

Diagrams

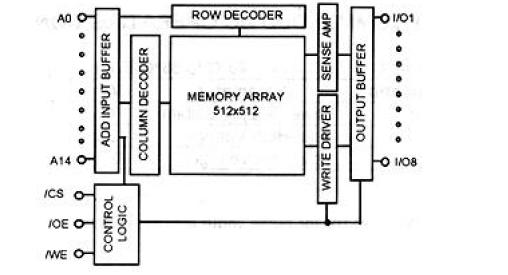

HY62256ALT1-70 block diagram
