ICE2B165

ICE2B165, off-line SMPS current mode controller, 2 kV, 1 A, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.13~5.35 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	5.35 / Piece
101 ~ 500 :	4.24 / Piece
501 ~ 1000 :	3.13 / Piece

PartNumber:: ICE2B165

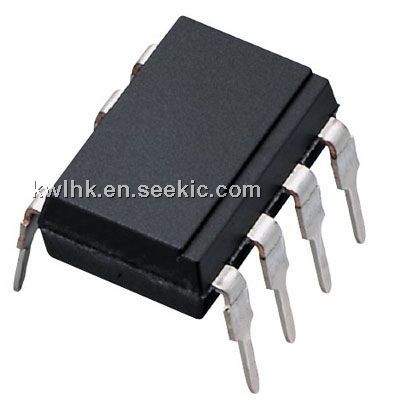

Brand:: eupec GmbH - infineon | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-09-12

From Other Seller

Part Number:ICE2B165
US $3.13 - 5.35
Quantity:

piece

Product Summary

The ICE2B165 is an off-line SMPS current mode controller. The ICE2B165 provides several special enhancements to satisfy the needs for low power standby and protection features. In standby mode frequency reduction is used to lower the power consumption and support a stable output voltage in this mode. The frequency reduction is limited to 20kHz/21.5kHz to avoid audible noise.

Parametrics

ICE2B165 absolute maximum ratings: (1)Drain Source Voltage: 650 V; (2)Pulsed drain current: 3.8 A; (3)Avalanche energy, repetitive tAR limited by max. Tj=150°C: 0.07 mJ; (4)Avalanche current, repetitive tAR limited by max. Tj=150°C: 1 A; (5)VCC Supply Voltage: -0.3 to 22 V; (6)FB Voltage VFB: -0.3 to 6.5 V: 150°C; (7)Storage Temperature: -50°C to +150°C; (8)ESD Robustness: 2 kV.

Features

ICE2B165 features: (1)650V/800V avalanche rugged CoolMOS; (2)Only few external components required; (3)Input Vcc Undervoltage Lockout; (4)67kHz/100kHz switching frequency; (5)Max duty cycle 72%; (6)Low Power Standby Mode to meet European Commission Requirements; (7)Thermal Shut Down with Auto Restart; (8)Overload and Open Loop Protection; (9)Overvoltage Protection during Auto Restart; (10)Adjustable Peak Current Limitation via external resistor; (11)Overall tolerance of Current Limiting < +/-5%; (12)Internal Leading Edge Blanking; (13)User defined Soft Start; (14)Soft driving for low EMI.
