IR2101PBF

IR2101PBF, MOSFET and IGBT driver, 600 V, 1.0W, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.54~3.12 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	3.12 / Piece
500 ~ 1000 :	1.75 / Piece
1000 ~ 1500 :	0.54 / Piece

PartNumber:: IR2101PBF

Brand:: International Rectifier - IR | Pack: DIP | D/C: 04+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-26

From Other Seller

Part Number:IR2101PBF
US $0.54 - 3.12
Quantity:

piece

Product Summary

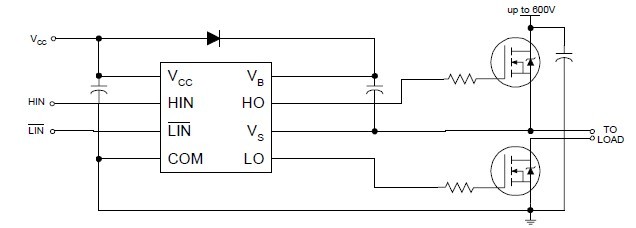

The IR2101PBF is a high voltage, high speed power MOSFET and IGBT driver with independent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input of the IR2101PBF is compatible with standard CMOS or LSTTL outputs. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. The floating channel of the IR2101PBF can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which operates up to 600 volts.

Parametrics

IR2101PBF absolute maximum ratings: (1)VB, High Side Floating Supply Voltage: -0.3 to 625V; (2)VS, High Side Floating Supply Offset Voltage: VB - 25 to VB + 0.3V; (3)VHO, High Side Floating Output Voltage: VS - 0.3 to VB + 0.3V; (4)VCC, Low Side and Logic Fixed Supply Voltage: -0.3 to 25V; (5)VLO, Low Side Output Voltage: -0.3 to VCC + 0.3V; (6)VIN, Logic Input Voltage (HIN & LIN): -0.3 to VCC + 0.3V; (7)dVs/dt, Allowable Offset Supply Voltage Transient: 50 V/ns max; (8)PD, Package Power Dissipation @ TA≤+25℃: 1.0W; (9)RθJA, Thermal Resistance, Junction to Ambient: 125℃/W; (10)TJ, Junction Temperature: 150℃; (11)TS, Storage Temperature: -55 to 150℃; (12)TL, Lead Temperature (Soldering, 10 seconds): 300℃.

Features

IR2101PBF features: (1)Floating channel designed for bootstrap operation Fully operational to +600V; (2)Tolerant to negative transient voltage dV/dt immune; (3)Gate drive supply range from 10 to 20V; (4)Undervoltage lockout; (5)5V Schmitt-triggered input logic; (6)Matched propagation delay for both channels; (7)Outputs in phase with inputs.
