IR2304S

IR2304S, high and low side driver, 3.3V, 200w, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.60~3.12 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	3.12 / Piece
500 ~ 1000 :	2.10 / Piece
1000 ~ 1500 :	0.60 / Piece

PartNumber:: IR2304S

Brand:: International Rectifier - IR | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-21

From Other Seller

Part Number:IR2304S
US $0.60 - 3.12
IR2304S

US $0.55 - 0.65 / Piece
(0) Remove
Quantity:

piece

Product Summary

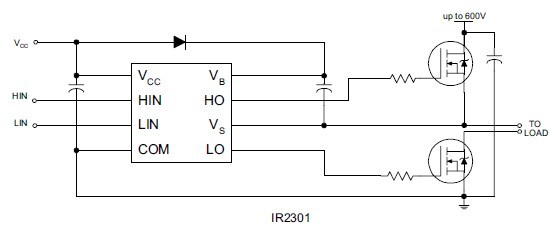

The IR2304S is a high voltage, high speed power MOSFET and IGBT driver with independent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3V logic. The IR2304S feature a high pulse current buffer stage designed for minimum driver cross-conduction. The IR2304S can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which operates up to 600 volts.

Parametrics

IR2304S absolute maximum ratings: (1)VB High side floating absolute voltage: -0.3 to 625V; (2)VS High side floating supply offset voltage: VB - 25 to VB + 0.3; (3)VHO High side floating output voltage: VS - 0.3 to VB + 0.3; (4)VCC Low side and logic fixed supply voltage: -0.3 to 25V; (5)VLO Low side output voltage: -0.3 to VCC + 0.3V; (6)VIN Logic input voltage COM: - 0.3 to VCC + 0.3V; (7)dVS/dt Allowable offset supply voltage transient: 50 V/ns; (8)PD Package power dissipation @ TA ≤ +25°C (8 lead PDIP): 1.0w (8 lead SOIC): 0.625w, RthJA Thermal resistance, junction to ambient (8 lead PDIP): 125w, (8 lead SOIC): 200w; (9)TJ Junction temperature: 150°C; (10)TS Storage temperature: -50 to 150°C; (11)TL Lead temperature (soldering, 10 seconds): 300°C.
