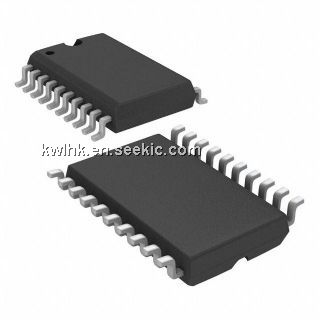

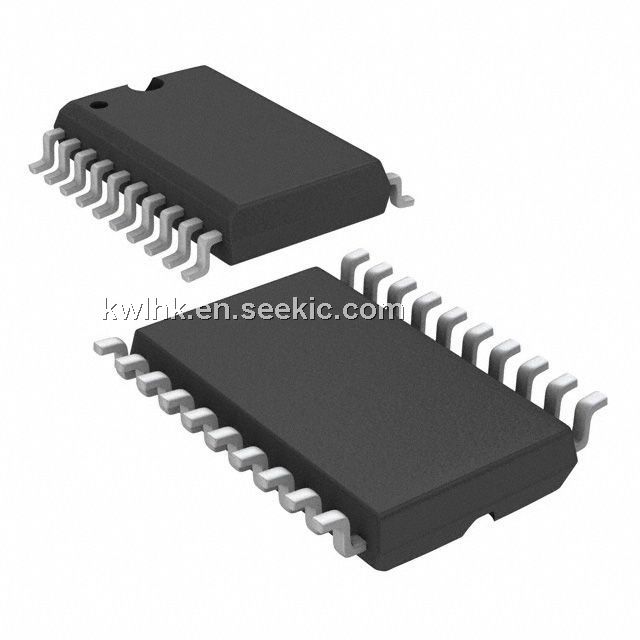

Product Summary

The ITS711L1 is a smart four channel highside power switch. This device can be used in (1)uC compatible power switch with diagnostic feedback for 12 V and 24 V DC grounded loads in industrial applications; (2)All types of resistive, inductive and capacitive loads; (3)Replaces electromechanical relays and discrete circuits.

Parametrics

ITS711L1 absolute maximum ratings: (1)Supply voltage: 43 V; (2)Supply voltage for full short circuit protection: 34 V; (3)Load current: self-limited A; (4)Junction temperature: +150°C; (5)Operating temperature range: -30 to +85°C; (6)Storage temperature range: –40 to +105 °C; (7)Power dissipation (DC): 3.6 W; (8)Current through input pin (DC): +/-2.0 mA.

Features

ITS711L1 features: (1)Overload protection; (2)Current limitation; (3)Short-circuit protection; (4)Thermal shutdown; (5)Overvoltage protection (including load dump); (6)Fast demagnetization of inductive loads; (7)Reverse battery protection1); (8)Undervoltage and overvoltage shutdown with auto-restart and hysteresis; (9)Open drain diagnostic output; (10)Open load detection in ON-state; (11)CMOS compatible input; (12)Loss of ground and loss of Vbb protection; (13)Electrostatic discharge (ESD) protection.

Diagrams

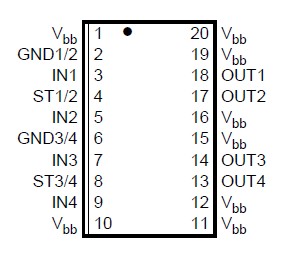

ITS711L1 pin connection
