Product Summary
1. Normally Open and Close, Single Pole Single Throw2. Control 400VAC or DC Voltage3. Switch 130mA Loads4. LED control Current, 5mA5. Low ON-Resistance6. dv/dt, >500V/ms7. Isolation Test Voltage, 1500VACrms
Parametrics
The absolute maximum ratings of KAQW614S are (1)Reverse Voltage:5.0V; (2)Continuous Forward Current:50mA; (3)Peak Forward Current:1A; (4)Power Dissipation:100mW; (5)Derate Linearly from 25°C:1.3mW/°C; (6)Output Breakdown Voltage:±400V; (7)Continuous Load Current:±130mA; (8)Power Dissipation:500mW; (9)Isolation Test Voltage:1500VACrms; (10)Isolation Resistance Vio=500V, Ta=25°C:≥1010Ω; (11)Total Power Dissipation:550mW; (12)Derate Linearly from 25°C:2.5mW/°C; (13)Storage Temperature Range:40°C to +125°C; (14)Operating Temperature Range:-30°C to +85°C; (15)Junction Temperature:100°C; (16)Soldering Temperature, 2mm from case, 10 sec:260°C
Features
The features of KAQW614S can be summarized as (1)Normally Open and Close, Single Pole Single Throw; (2)Control 400VAC or DC Voltage; (3)Switch 130mA Loads; (4)LED control Current, 5mA; (5)Low ON-Resistance; (6)dv/dt, >500V/ms; (7)Isolation Test Voltage, 1500VACrms
Diagrams
<P><IMG alt="KAQW614S Block Diagram" src="http://www.seekic.com/uploadfile/ic-mfg/201281201439238.jpg" border=0></P>
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

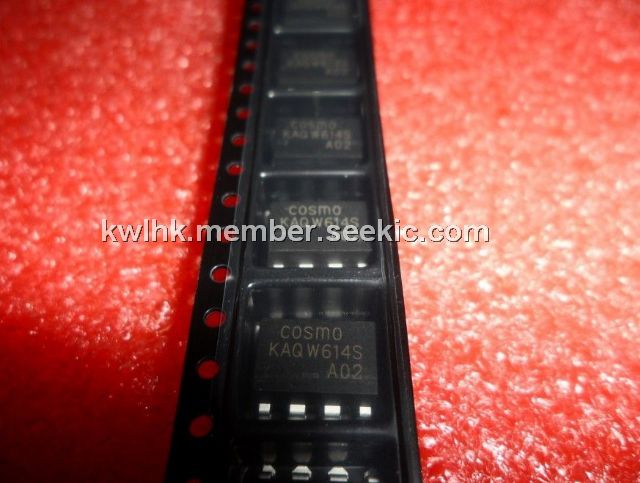

 KAQW614S |
