Product Summary
The LMV934MTX/NOP8 is a low voltage, low power operational amplifier. It is guaranteed to operate from +1.8V to +5.0V supply voltages and have rail-to-rail input and output. The LMV934MTX/NOP8 input common mode voltage extends 200mV beyond the supplies which enables user enhanced functionality beyond the supply voltage range. The LMV934MTX/NOP8 is optimized to work at 1.8V which make them ideal for portable two-cell battery powered systems and single cell Li-Ion systems. The LMV934MTX/NOP8 is capable of driving a 600Ω load and up to 1000pF capacitive load with minimal ringing. It is used in Consumer communication, Consumer computing, PDAs, Audio pre-amp, Portable/battery-powered electronic equipment, Supply current monitoring, Battery monitoring.
Parametrics
LMV934MTX/NOP8 absolute maximum ratings:(1)ESD Tolerance, Machine Model: 200V; (2)Human Body Model: 2000V; (3)Differential Input Voltage: ±Supply Voltage; (4)Supply Voltage (V+–V-): 5.5V; (5)Storage Temperature Range: -65℃ to 150℃; (6)Junction Temperature: 150℃; (7)Mounting Temp Infrared or Convection (20 sec): 235℃.
Features
LMV934MTX/NOP8 features:(1)Guaranteed 1.8V, 2.7V and 5V specifications; (2)Output swing: w/600Ω load 80mV from rail; w/2kΩ load 30mV from rail; (3)VCM 200mV beyond rails; (4)Supply current (per channel) 100μA; (5)Gain bandwidth product 1.4MHz; (6)Maximum VOS 4.0mV; (7)Ultra tiny packages; (8)Temperature range.

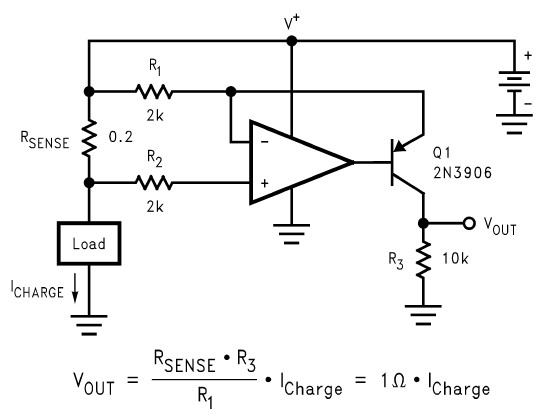

Diagrams
 |
 LMV921 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
LMV921_QUAL |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
LMV921EVAL |
|
EVALUATION BOARD FOR LMV921 |
Data Sheet |
|
|
||||||
 |
LMV921M5 |
National Semiconductor (VA) |
IC OPAMP R-R I/O LP SOT23-5 |
Data Sheet |
Negotiable |
|
||||||
|
LMV921M5X |
Other |
|
Data Sheet |
Negotiable |
|
||||||
 |
LMV921M7 |
National Semiconductor (VA) |
IC OP AMP LOW POWER SC-70-5 |
Data Sheet |
Negotiable |
|
||||||
