LT1781IS

LT1781IS, low power 5V RS232 dual receiver, 6 V, 30 sec, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	3.00 / Piece
101 ~ 200 :	2.00 / Piece
201 ~ 300 :	1.00 / Piece

PartNumber:: LT1781IS

Brand:: Linear Technology - Linear | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 1000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-09-06

From Other Seller

Part Number:LT1781IS
US $1.00 - 3.00
Quantity:

piece

Product Summary

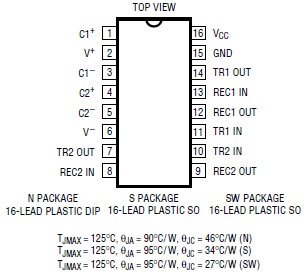

The LT1781IS is a low power 5V RS232 dual receiver. The device can be used in (1)portable computers; (2)battery-powered systems; (3)power supply generator; (4)terminals; (5)modems. It is fully compliant with EIA RS232 standards. Driver outputs are protected from overload, and can be shorted to ground or up to ±30V without damage. And the LT1781IS is available in 16-pin DIP,SO and SW packages. Using only 0.1mF external capacitors, these circuits consume only 40mW of power, and can operate to 120kbaud even while driving heavy capacitive loads.

Parametrics

LT1781IS absolute maximum ratings: (1)Supply Voltage (VCC): 6 V; (2)V+ : 13.2V; (3)V–:–13.2V; (4)Operating Temperature Range: 0°C to 70°C; (5)Input Voltage Driver:V– to V+; (6)Short-Circuit Duration V+: 30 sec; (7)Storage temperature: -65 to +150 °C; (8)Receiver Output: Indefinite; (9)Lead Temperature (Soldering, 10 sec): 300°C.

Features

LT1781IS features:(1)10mA Max Supply Current; (2)ESD Protection to IEC 1000-4-2 Level 4 ±15kV Air Gap, ±8kV Contact; (3)Uses Small Capacitors: 0.1uF; (4)120kBaud Operation for RL = 3k, CL = 2500pF; (5)250kBaud Operation for RL = 3k, CL = 1000pF; (6)Outputs Withstand ±30V Without Damage; (7)CMOS Comparable Low Power: 40mW; (8)Operates from a Single 5V Supply; (9)Rugged Bipolar Design; (10)Outputs Assume a High Impedance State When Off or Powered Down; (11)Meets All RS232 Specifications; (12)Available With or Without Shutdown; (13)Absolutely No Latch-up.
