LTC4006EGN-2

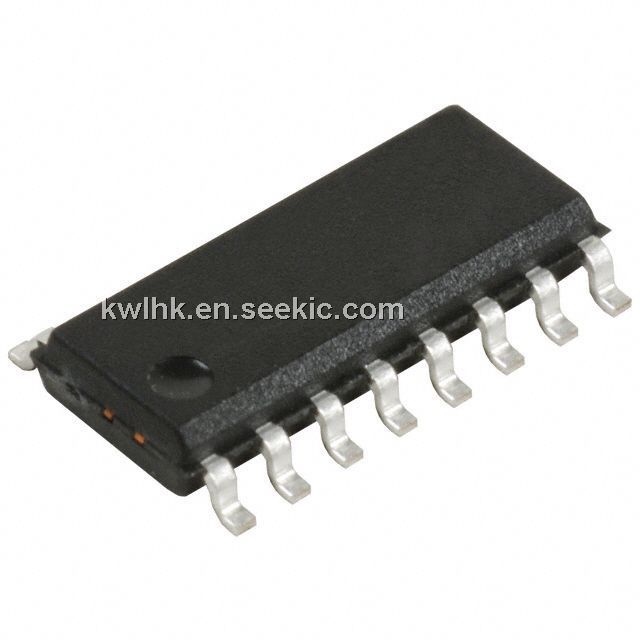

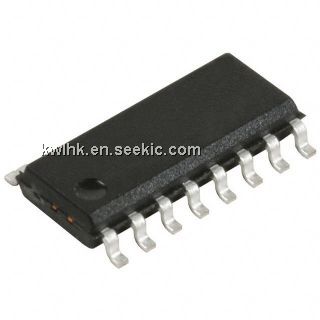

LTC4006EGN-2, high efficiency standalone li-ion battery charger, 4A, +28V, SSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.12~5.34 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	5.34 / Piece
101 ~ 500 :	4.23 / Piece
501 ~ 1000 :	3.12 / Piece

PartNumber:: LTC4006EGN-2

Brand:: Texas Instruments - TI | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-09-12

From Other Seller

Part Number:LTC4006EGN-2
US $3.12 - 5.34
Quantity:

piece

Product Summary

The LTC4006EGN-2 is a 4A, high efficiency, standalone li-ion battery charger. It can be used in (1)notebook computers; (2)portable instruments; (3)battery-backup systems; (4)standalone li-ion chargers.

Parametrics

LTC4006EGN-2 absolute maximum ratings: (1)Voltage from DCIN, CLP, CLN, TGATE, INFET, ACP/SHDN, CHG to GND: +32V/–0.3V; (2)CSP, BAT to GND: +28V/–0.3V; (3)RT to GND: +7V/–0.3V; (4)NTC: +10V/–0.3V; (5)Operating Ambient Temperature Range: –40°C to 85°C; (6)Storage Temperature Range: -65°C to 150°C; (7)Operating Junction Temperature:– 40°C to 125°C; (8)Lead Temperature (Soldering, 10 sec): 300°C.

Features

LTC4006EGN-2 features: (1)Complete Charger Controller for 2-, 3- or 4-Cell Lithium-Ion Batteries; (2)High Conversion Efficiency: Up to 96%; (3)Output Currents Exceeding 4A; (4)±0.8% Accurate Preset Voltages: 8.4V, 12.6V, 16.8V; (5)Built-In Charge Termination with Automatic Restart; (6)AC Adapter Current Limiting Maximizes Charge Rate; (7)Automatic Conditioning of Deeply Discharged Batteries; (8)Thermistor Input for Temperature Qualified Charging; (9)Wide Input Voltage Range: 6V to 28V; (10)0.5V Dropout Voltage; Maximum Duty Cycle: 98%; (11)Programmable Charge Current: ±5% Accuracy; (12)Indicator Outputs for Charging, C/10 Current Detection and AC Adapter Present; (13)Charging Current Monitor Output; (14)16-Pin Narrow SSOP Package.
