Product Summary
The M24C04-BN6 is a bus EEPROM. The device behaves as a slave in the I2C protocol, with all memory operations synchronized by the serial clock. Read and Write operations are initiated by a Start condition, generated by the bus master. The bidirectional signal is used to transfer data in or out of the device. It is an open drain output that may be wire-ORed with other open drain or open collector signals on the bus. The device select code consists of a 4-bit Device Type Identifier, and a 3-bit Chip Enable “Address” (E2, E1, E0). To address the memory array, the 4-bit Device Type Identifier is 1010b. It is given a unique 3-bit code on the Chip Enable (E0, E1, E2) inputs. When the device select code is received, the device only responds if the Chip Enable Address is the same as the value on the Chip Enable (E0, E1, E2) inputs.
Parametrics
M24C04-BN6 absolute maximum ratings: (1)Ambient operating temperature: –40 to 130 °C; (2)Storage Temperature: -65°C to +150°C; (3)PDIP-specific lead temperature during soldering: 260°C; (4)DC output current (SDA = 0): 5 mA; (5)Input or output range: -0.5 to 6.5 V; (6)Supply voltage :–0.5 to 6.5 V; (7)Electrostatic discharge voltage (human body model): 4000 V.
Features
M24C04-BN6 features: (1)Supports both the 100 kHz I2C Standard-mode and the 400 kHz I2C Fast-mode; (2)Write Control input; (3)Byte and Page Write (up to 16 bytes); (4)Random and Sequential Read modes; (5)Self-timed programming cycle; (6)Automatic address incrementing; (7)Enhanced ESD/latch-up protection; (8)More than 1 million write cycles; (9)More than 40-year data retention.

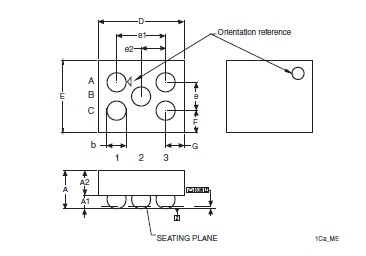

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||
---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() M24C04-BN6 |
![]() STMicroelectronics |
![]() EEPROM RO 511-M24C04-WBN6 |
![]() Data Sheet |
![]() Negotiable |
|
||||
