Product Summary
The M54523FP is a seven-circuit Darlington transistor array with clamping diodes. The circuits are made of NPN transistors. Both the semiconductor integrated circuits perform high-current driving with extremely low input-current supply. The applications of the M54523FP include Drives of relays and printers, digit drives of indication elements (LEDs and lamps), and interfaces between standard MOS-bipolar logic IC.
Parametrics
M54523FP absolute maximum ratings: (1)VCEO, Collector-emitter voltage: -0.5 to 50V; (2)IC, Collector current: 500mA; (3)VI, Input voltage: -0.5 to 30V; (4)IF, Clamping diode forward current: 500mA; (5)VR, Clamping diode reverse voltage: 50V; (6)PD, Power dissipation: 1.47(P)/1.00(FP); (7)TOPR, Operating temperature: -20 to 75℃; (8)TSTG, Storage temperature: -55 to 125℃.
Features
M54523FP features: (1)High breakdown voltage (BVCEO 3 50V); (2)High-current driving (IC(max) = 500mA); (3)With clamping diodes; (4)Driving available with PMOS IC ouput; (5)Wide operating temperature range (Ta = -20 to +75℃).

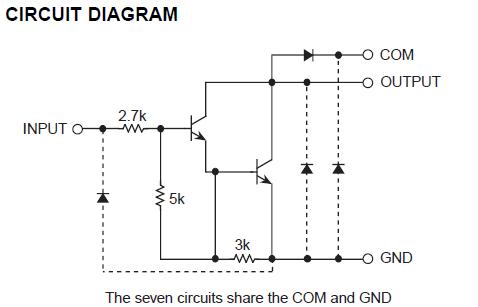

Diagrams
