MAX1840EUB

MAX1840EUB, Low-Voltage SIM/Smart Card Level Translator, MSOP, -0.3V to +6.0V, 444mW, Maxim Integrated Products

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.12~1.95 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	1.95 / Piece
500 ~ 1000 :	0.98 / Piece
1000 ~ 1500 :	0.12 / Piece

PartNumber:: MAX1840EUB

Brand:: Maxim Integrated Products - Maxim | Pack: MSOP | D/C: 04+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-02

From Other Seller

Part Number:MAX1840EUB
US $0.12 - 1.95
Quantity:

piece

Product Summary

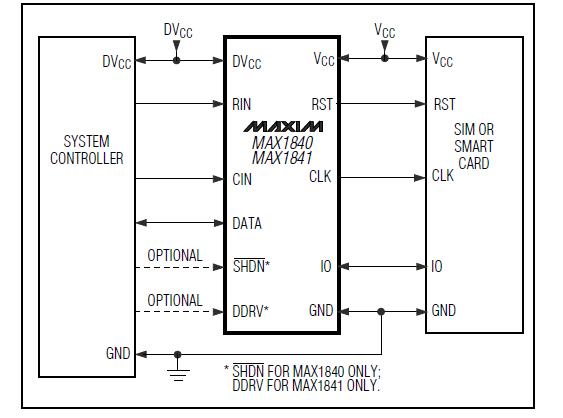

The MAX1840EUB is a subscriber identity module (SIM)/smart card level translator provides level shifting and electrostatic discharge (ESD) protection for SIM and smart card ports. The devices integrates two unidirectional level shifters for the reset and clock signals, a bidirectional level shifter for the serial data stream, and ±10kV ESD protection on all card contacts. The applications of the MAX1840EUB include SIM Interface in GSM Cellular Telephones, Smart Card Readers, Logic Level Translation, SPI/QSPI/MICROWIRE Level Translation.

Parametrics

MAX1840EUB absolute maximum ratings: (1)DVCC, VCC to GND: -0.3V to +6.0V; (2)RIN, CIN, DATA, DDRV, SHDN to GND: -0.3V to (DVCC + 0.3V); (3)RST, CLK, IO to GND: -0.3V to (VCC + 0.3V); (4)Continuous Power Dissipation (TA = +70℃), 10-Pin μMAX (derate 5.6mW/℃ above +70℃): 444mW; (5)Operating Temperature Range: -40℃ to +85℃; (6)Storage Temperature Range: -65℃ to +150℃; (7)Junction Temperature: +150℃; (8)Lead Temperature (soldering, 10s): +300℃.

Features

MAX1840EUB features: (1)SIM/Smart Card Level Shifting; (2)+1.4V to +5.5V Controller Voltage Range; (3)+1.7V to +5.5V Card Voltage Range; (4)±10kV ESD Card Socket Protection; (5)Allows Level Translation with DVCC ≥ VCC or DVCC ≤ VCC; (6)Automatically Shuts Down When Either Supply Is Removed; (7)Card Contacts Actively Pulled Low During Shutdown; (8)1μA Total Quiescent Supply Current; (9)0.01μA Total Shutdown Supply Current; (10)Ultra-Small 10-Pin μMAX Package; (11)Compliant with GSM Test Specifications 11.11 and 11.12.
