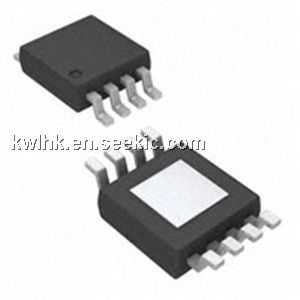

MAX822SUS-T

MAX822SUS-T, microprocessor supervisory, 6.0V, 20mA, 2.5μA, SMD

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	3.00 / Piece
500 ~ 1000 :	2.00 / Piece
1000 ~ 1500 :	1.00 / Piece

PartNumber:: MAX822SUS-T

Brand:: Maxim Integrated Products - Maxim | Pack: SMD | D/C: 06+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-24

From Other Seller

Part Number:MAX822SUS-T
US $1.00 - 3.00
Quantity:

piece

Product Summary

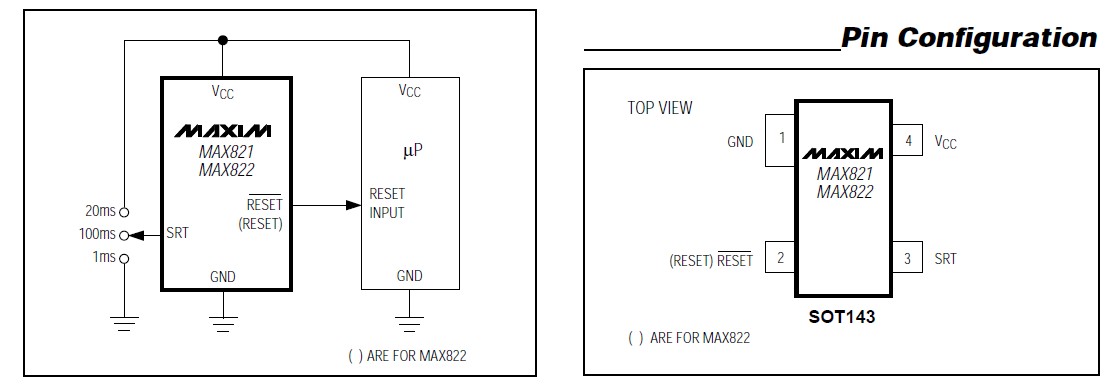

The MAX822SUS-T is a microprocessor supervisory. The MAX822SUS-T provide excellent circuit reliability and low cost by eliminating external components and adjustments when used with 5V-powered or 3V-powered circuits. The MAX822SUS-T also provide a power-on reset timeout delay that is pin selectable to 1ms (max), 20ms (min), or 100ms (min). Applications are (1)Bar-Code Scanners; (2)Computers; (3)Controllers; (4)Intelligent Instruments; (5)Critical μP and μC Power Monitoring; (6)Portable/Battery-Powered Equipment.

Parametrics

MAX822SUS-T absolute maximum ratings: (1)Terminal Voltage (with respect to GND)VCC : -0.3V to 6.0V; (2)Terminal Voltage (with respect to GND)All Other Inputs: -0.3V to (VCC + 0.3V); (3)Input Current, VCC, SRT: 20mA; (4)Output Current, RESET or RESET: 20mA; (5)Continuous Power Dissipation (TA = +70°C)SOT143-4 (derate 4mW/°C above +70°C): 320mW; (6)Operating Temperature Range: -40°C to +125°C; (7)Storage Temperature Range: -65°C to +160°C; (8)Lead Temperature (soldering, 10sec): +300°C.

Features

MAX822SUS-T features: (1)Pin-Selectable, Precision Power-On Reset Delay: 1ms (max), 20ms (min), or 100ms (min); (2)Precision Monitoring of +3V to +5V Power-Supply Voltages; (3)2.5μA Supply Current; (4)Guaranteed Over Temperature (-40°C to +125°C); (5)Guaranteed RESET Valid to VCC = 1V (MAX821); (6)Power-Supply Transient Immunity; (7)No External Components; (8)SOT143 Package.
