Product Summary

The MC74HC86AFEL is a quad 2-input exclusive OR gate. And it is identical in pinout to the LS86. The device inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs.

Parametrics

MC74HC86AFEL absolute maximum ratings: (1)DC supply voltage: -0.3 to +7.0 V; (2)DC input voltage: -0.5 to Vcc+0.5 V; (3)DC output voltage: -0.5 to Vcc+0.5 V; (4)DC input current: +/-20 mA; (5)DC output current: +/-25 mA; (6)DC supply current, Vcc and GND pins: +/-50 mA; (7)power dissipation: 750 mW; (8)storage temperature: -65 to +150 °C.

Features

MC74HC86AFEL features: (1)Output Drive Capability: 10 LSTTL Loads; (2)Outputs Directly Interface to CMOS, NMOS, and TTL; (3)Operating Voltage Range: 2.0 to 6.0 V; (4)Low Input Current: 1 μA; (5)High Noise Immunity Characteristic of CMOS Devices; (6)In Compliance with JEDEC Standard No. 7A Requirements; (7)Chip Complexity: 56 FETs or 14 Equivalent Gates; (8)Pb-Free Packages are Available.

Diagrams

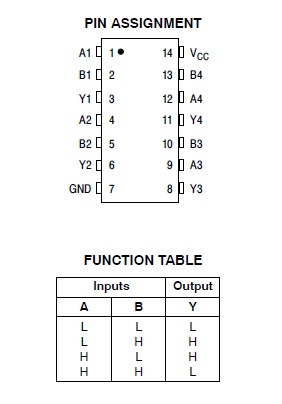

MC74HC86AFEL pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MC74HC86AFEL
MC74HC86AFEL

IC GATE OR QUAD 2IN EXC 14SOEIAJ
Data Sheet
Negotiable
MC74HC86AFELG
MC74HC86AFELG
ON Semiconductor
Gates (AND / NAND / OR / NOR) 2-6V Quad 2-Input XOR
Data Sheet
0-1: $0.43
1-25: $0.34
25-100: $0.29
100-500: $0.22
