Product Summary

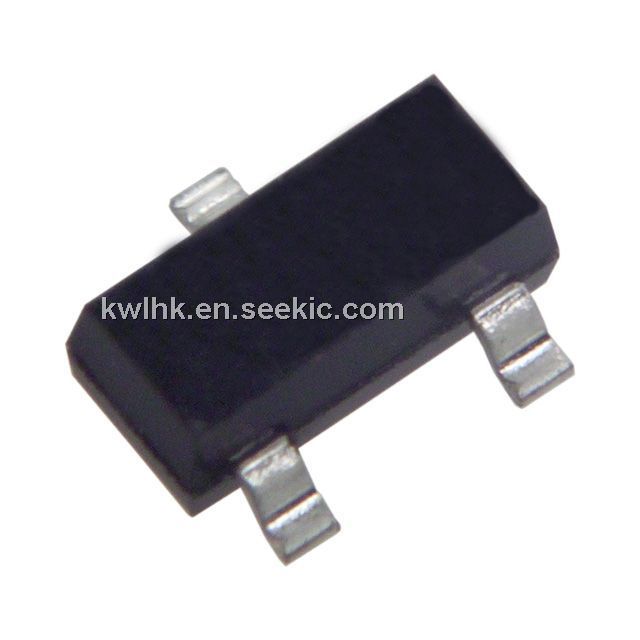

The MMBZ5245BLT1 is a zener voltage regulator diode.
Parametrics
MMBZ5245BLT1 absolute maximum ratings: (1)Total Device Dissipation FR-5 Board TA = 25℃: 225 mW; (2)Total Device Dissipation FR-5 Board derate above 25℃: 1.8 mW/℃; (3)Thermal Resistance Junction to Ambient: 556 ℃/W; (4)Total Device Dissipation: 300 mW; (5)Thermal Resistance Junction to Ambient: 417 °C/W; (6)Junction and Storage Temeprature: 150 ℃
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() MMBZ5245BLT1 |
![]() ON Semiconductor |
![]() Zener Diodes 15V 225mW |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() MMBZ5245BLT1G |
![]() ON Semiconductor |
![]() Zener Diodes 15V 225mW |
![]() Data Sheet |
![]()
|
|
