Product Summary

The NE529N is a high-speed analog voltage comparator which, for the first time, mates state-of-the-art Schottky diode technology with the conventional linear process. This allows simultaneous fabrication of high-speed TTL gates with a precision linear amplifier on a single monolithic chip. The NE529N can be used in A/D conversion, ECL-to-TTL interface, TTL-to-ECL interface, Memory sensing, Optical data coupling.

Parametrics

NE529N absolute maximum ratings: (1)V1+ Positive supply voltage: +15 V; (2)V1- Negative supply voltage: -15 V; (3)V2+ Gate supply voltage: +7 V; (4)VOUT Output voltage: +7 V; (5)VIN Differential input voltage: ±5 V; (6)VCM Input common mode voltage: ±6 V; (7)PD Maximum power dissipation1 TA=25℃ (still-air)N package: 1420 mW; D package: 1040 mW; (8)TA Operating temperature range: 0 to +70 ℃; (9)TSTG Storage temperature range: -65 to +150 ℃; (10)TSOLD Lead soldering temperature(10 sec max): +300 ℃.

Features

NE529N features: (1)10ns propagation delay; (2)Complementary output gates; (3)TTL or ECL compatible outputs; (4)Wide common-mode and differential voltage range; (5)Typical gain 5000.

Diagrams

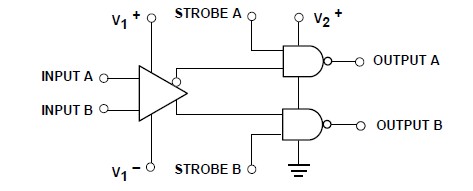

NE529N block diagram
