Product Summary

The NJM2114L is a high performance dual low noise operational amplifier which could be replaced in application with NJM5532. Comparing to NJM5532, the NJM2114L has superior specifications on slew rate, bandwidth and offset voltage. Furthermore lower noise and distortion are achieved, it is applicable for hi-fi audio equipments.

Parametrics

NJM2114L absolute maximum ratings: (1)supply voltage: ±22V; (2)input voltage: V+/V-; (3)differential input voltage: ±0.5V; (4)power dissipation: 800mW; (5)operating temperature range: -20 to +75°C; (6)storage temperature range: -40 to +125°C.

Features

NJM2114L features: (1)operating voltage: ±3.0 to ±22.0V; (2)high slew rate: 15V/us typ.; (3)wide unity gain bandwidth: 15MHz typ.; (4)low noise voltage: 0.9uVnms typ.; (5)high output current: 60mA typ.; (6)package outline: 8-sip; (7)bipolar technology.

Diagrams

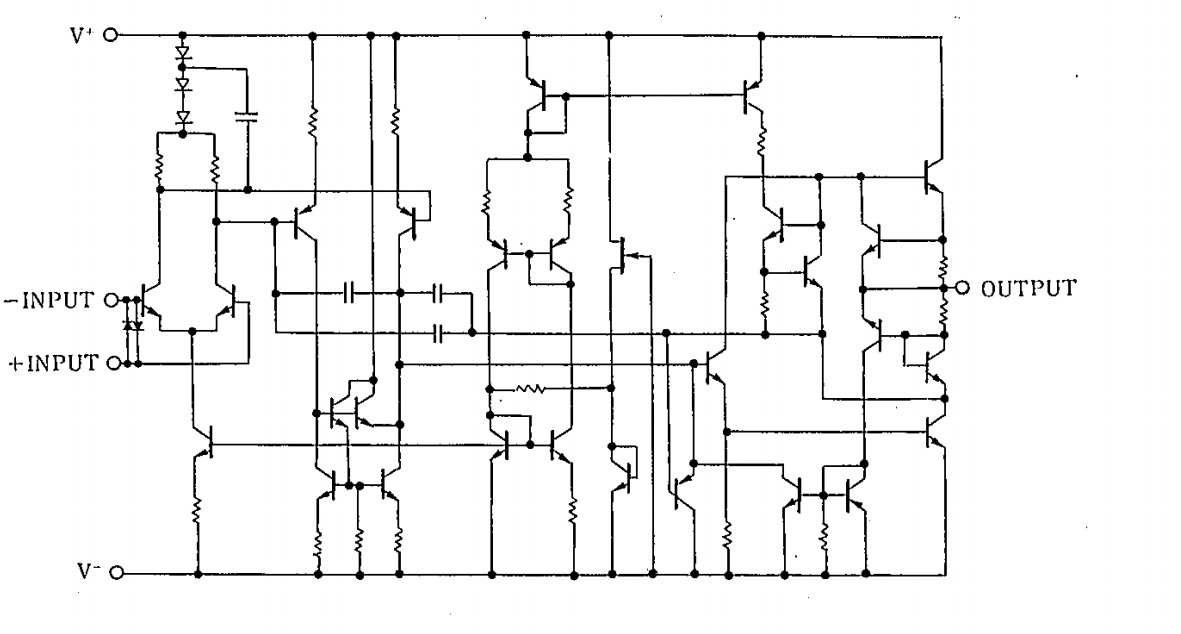

NJM2114L block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

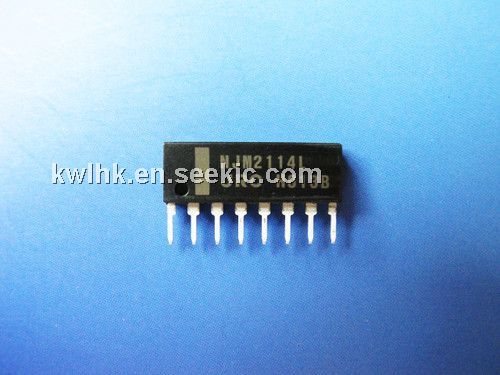

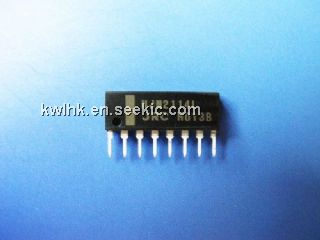

NJM2114L
NJM2114L
NJR
Operational Amplifiers - Op Amps Dual Low Noise
Data Sheet
0-2000: $0.37
2000-5000: $0.34
5000-10000: $0.32
