Product Summary

The OPA348AIDBVR is a single supply, low-power, CMOS op amp in micro packaging. Featuring an extended bandwidth of 1MHz, and a supply current of 45μA, it is useful for low-power applications on single supplies of 2.1V to 5.5V. Low supply current of 45μA, and an input bias current of 0.5pA, make the OPA348AIDBVR an optimal candidate for low-power, high-impedance applications such as smoke detectors and other sensors. The applications of the OPA348AIDBVR include portable equipment, battery-powered equipment, smoke alarms, co detectors and medical instrumentation.

Parametrics

OPA348AIDBVR absolute maximum ratings: (1)Supply Voltage: V– to V+ 7.5V; (2)Signal Input Terminals, Voltage: (V–) – 0.5V to (V+) + 0.5V; Current: 10mA; (3)Output Short-Circuit: Continuous; (4)Operating Temperature: –65 to +150℃; (5)Storage Temperature: –65 to +150℃; (6)Junction Temperature: 150℃; (7)Lead Temperature (soldering, 10s): 300℃.

Features

OPA348AIDBVR features: (1)low IQ: 45μA typical; (2)low cost; (3)rail-to-rail input and output; (4)single supply: +2.1V to +5.5V; (5)input bias current: 0.5pA; (6)microsize packages: SC70-5, SOT23-8 and TSSOP-14; (7)high speed:power with bandwidth: 1MHz.

Diagrams

OPA348AIDBVR pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

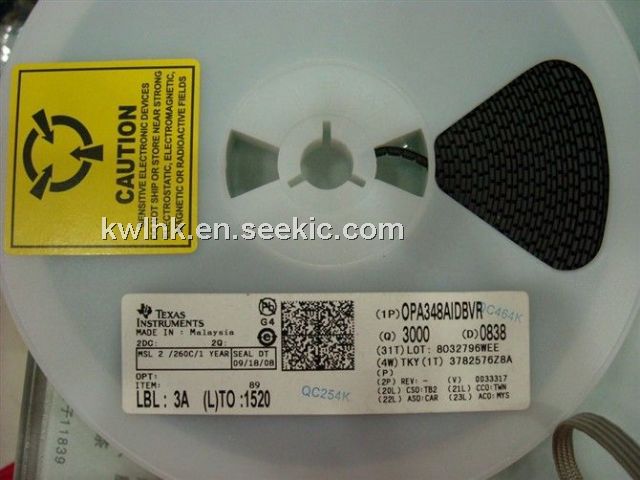

OPA348AIDBVR
OPA348AIDBVR

Texas Instruments

Operational Amplifiers - Op Amps 1MHz 45uA RRIO Single Op Amp

Data Sheet

0-1: $0.35
1-25: $0.29
25-100: $0.26
100-250: $0.24
OPA348AIDBVRG4
OPA348AIDBVRG4

Texas Instruments

Operational Amplifiers - Op Amps 1MHz 45uA RRIO Single Op Amp

Data Sheet

0-2000: $0.15
2000-3000: $0.13
3000-6000: $0.13
6000-12000: $0.13
