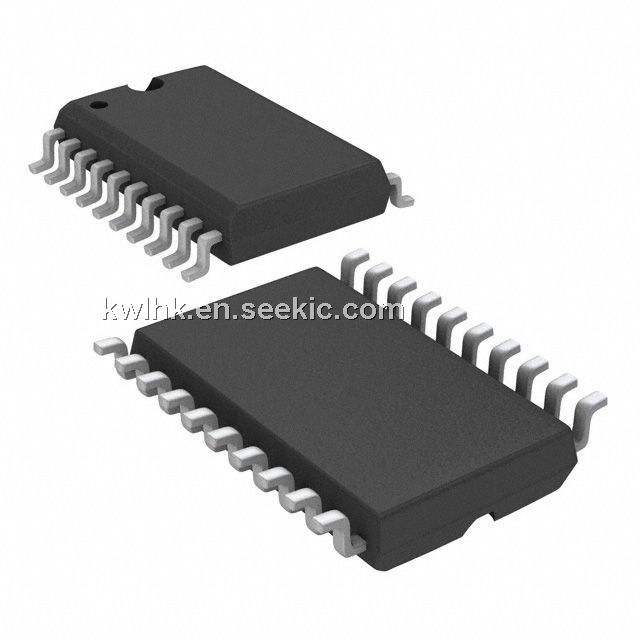

Product Summary

The PIC16F690-I is a 20-pin flash-based, 8-bit CMOS microcontroller. It also precharges the B port to a user-selectable bias voltage (BIASV) to minimize live-insertion noise.

Parametrics

PIC16F690-I absolute maximum ratings: (1)Ambient temperature under bias: -40° to +125°C; (2)Storage temperature: -65°C to +150°C; (3)Voltage on VDD with respect to VSS: -0.3V to +6.5V; (4)Voltage on MCLR with respect to Vss: -0.3V to +13.5V; (5)Voltage on all other pins with respect to VSS: -0.3V to (VDD + 0.3V); (6)Total power dissipation: 800 mW; (7)Maximum current out of VSS pin: 300 mA; (8)Maximum current into VDD pin: 250 mA.

Features

PIC16F690-I features: (1)Power-Saving Sleep mode; (2)Wide Operating Voltage Range (2.0V-5.5V); (3)Industrial and Extended Temperature Range; (4)Power-on Reset (POR); (5)Power-up Timer (PWRTE) and Oscillator Start-up Timer (OST); (6)Brown-out Reset (BOR) with Software Control Option; (7)Enhanced Low-Current Watchdog Timer (WDT) with On-Chip Oscillator (Software selectable nominal 268 Seconds with Full Prescaler) with Software Enable; (8)Multiplexed Master Clear/Input Pin; (9)Programmable Code Protection; (10)Interrupt Capability; (11)8-Level Deep Hardware Stack; (12)Direct, Indirect and Relative Addressing modes.

Diagrams

PIC16F690-I pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PIC16F690-I/ML
PIC16F690-I/ML
Microchip Technology
8-bit Microcontrollers (MCU) 7.1 KB 256 RAM 18I/O
Data Sheet
0-1: $1.40
1-10: $1.12
10-25: $1.03
25-100: $0.95
PIC16F690-I/P
PIC16F690-I/P
Microchip Technology
8-bit Microcontrollers (MCU) 7KB FL 256R 18 I/O
Data Sheet
0-1: $1.43
1-10: $1.15
10-25: $1.05
25-100: $0.97
PIC16F690-I/SO
PIC16F690-I/SO
Microchip Technology
8-bit Microcontrollers (MCU) 7KB FL 256R 18 I/O
Data Sheet
0-1: $1.40
1-10: $1.12
10-25: $1.03
25-100: $0.95
PIC16F690-I/SS
PIC16F690-I/SS
Microchip Technology
8-bit Microcontrollers (MCU) 7KB FL 256R 18 I/O
Data Sheet
0-1: $1.22
1-10: $0.97
10-25: $0.89
25-100: $0.83
