Product Summary
The S1A/1T is a surface mount rectifier. It can be used in (1)Pentium III & next generation processor DC to DC converter application; (2)Low cost Pentium with AGP. The IC provides a single chip controller IC for the Vcore , GTL+ and clock supplies required for the Pentium III applications. Also it features less current sensing by using the Rds-on of the high side Power MOSFET as the sensing resistor, a Power Good window comparator that switches its open collector output low when the output is outside of a ±10% window.
Parametrics
S1A/1T absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage: 50 V; (2)Maximum RMS Voltage VRMS: 35 V; (3)Maximum DC Blocking Voltage: 50 V;(4)Maximum Average Forward Rectified Current: 1.0 A; (5)Maximum Instantaneous Forward Voltage at 1.0A: 1.10 V; (6)Maximum DC Reverse Current: 5.0 A; (7)Maximum Reverse Recovery Time: 2.5s; (8)Typical Junction capacitance: 12 pF; (9)Typical Thermal Resistance: 30.0 W.
Features
S1A/1T features: (1)For surface mounted applications; (2)High temperature metallurgically bonded-no compression contacts as found in other diode-constructed rectifiers; (3)Glass passivated junction; (4)Built-in strain relief; (5)Easy pick and place; (6)Plastic package has Underwriters Laboratory Flammability Classification 94V-O; (7)Complete device submersible temperature of 260 for 10 seconds in solder bath.

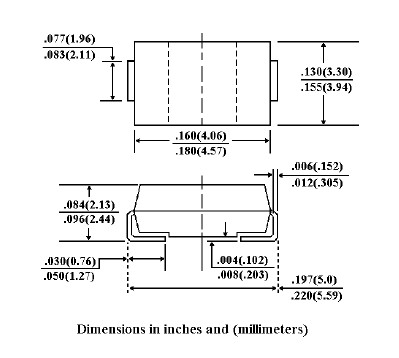

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 S1A/1T |
Vishay Semiconductors |
Rectifiers 1.0 Amp 50 Volt 40A IFSM @ 8.3ms |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
S1A/11T |
Vishay Semiconductors |
Rectifiers 1.0 Amp 50 Volt 40A IFSM @ 8.3ms |
Data Sheet |
Negotiable |
|
||||
|
S1A/1T |
Vishay Semiconductors |
Rectifiers 1.0 Amp 50 Volt 40A IFSM @ 8.3ms |
Data Sheet |
Negotiable |
|
||||
|
S1A/2FT |
Vishay Semiconductors |
Rectifiers 1.0 Amp 50 Volt 40A IFSM @ 8.3ms |
Data Sheet |
Negotiable |
|
||||
|
S1A/51T |
Vishay Semiconductors |
Rectifiers 1.0 Amp 50 Volt 40A IFSM @ 8.3ms |
Data Sheet |
Negotiable |
|
||||
|
S1A/61T |
Vishay Semiconductors |
Rectifiers Vr/50V Io/1A T/R |
Data Sheet |
Negotiable |
|
||||
|
S1A/63T |
Vishay Semiconductors |
Rectifiers 1.0 Amp 50 Volt 40A IFSM @ 8.3ms |
Data Sheet |
Negotiable |
|
||||
