Product Summary
The SI3210-FTR is a low-voltage CMOS device that integrates SLIC, codec, and battery generation functionality into a complete analog telephone interface. The SI3210-FTR is ideal for short loop applications such as terminal adaptors, cable telephony, wireless local loop, Voice Over IP, PBX/Key Systems and Integrated Access Devices.
Parametrics
SI3210-FTR absolute maximum ratings: (1)DC Supply Voltage: –0.5 to 6.0 V; (2)Input Current, Digital Input Pins: ±10 mA; (3)Digital Input Voltage: –0.3 to (VDDD + 0.3) V; (4)ESD, Si3210/11/12 (Human Body Model): 2000 V; (5)Operating Temperature Range: –40 to 100 ℃; (6)Storage Temperature Range: –40 to 150 ℃; (7)TSSOP-38 Thermal Resistance, Typical: 50 ℃/W.
Features
SI3210-FTR features: (1)Performs all BORSCHT Functions; (2)Ideal for Short Loop Applications (5 REN at 2 kft, 3 REN at 4 kft); (3)Low Voltage CMOS; (4)Package: 38-Pin TSSOP; (5)Compliant with Relevant LSSGR and CCITT Specifications; (6)Battery Voltage Generated Dynamically with On-Chip DC-DC Converter Controller (Si3210 only); (7)5 REN Ringing Generator: Programmable Frequency, Amplitude, Waveshape, and Cadence.

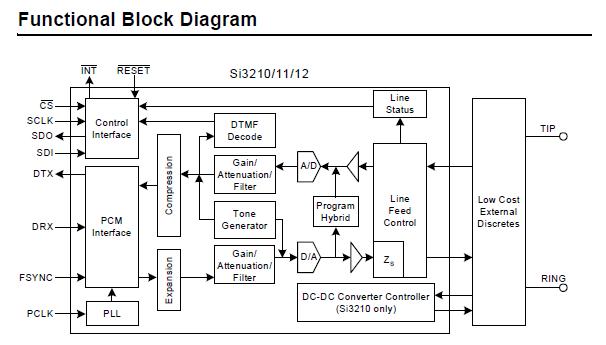

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SI3210-FTR |
Silicon Labs |
Telecom Line Management ICs Single-CH SLIC/Codec dc-dc |
Data Sheet |
|
|
||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||
|
SI3200-BS |
Silicon Labs |
RF Wireless Misc 100V LINEFEED CODEC |
Data Sheet |
Negotiable |
|
||||||||||
|
SI3200-FS |
Silicon Labs |
Telecom Line Management ICs 100 V Linefeed Interface IC unit |
Data Sheet |
Negotiable |
|
||||||||||
|
Si3200-G-FS |
Silicon Labs |
RF Wireless Misc 100 V Linefeed Inter IC unit price |
Data Sheet |
|
|
||||||||||
|
SI3200-G-FSR |
Silicon Labs |
Telecom Line Management ICs 100 V Linefeed Interface |
Data Sheet |
|
|
||||||||||
|
Si3200-G-GS |
Silicon Labs |
RF Wireless Misc 100 V Linefeed Inter IC unit price |
Data Sheet |
|
|
||||||||||
|
SI3200-G-GSR |
Silicon Labs |
Telecom Line Management ICs 100 V Linefeed Interface |
Data Sheet |
|
|
||||||||||
