Product Summary

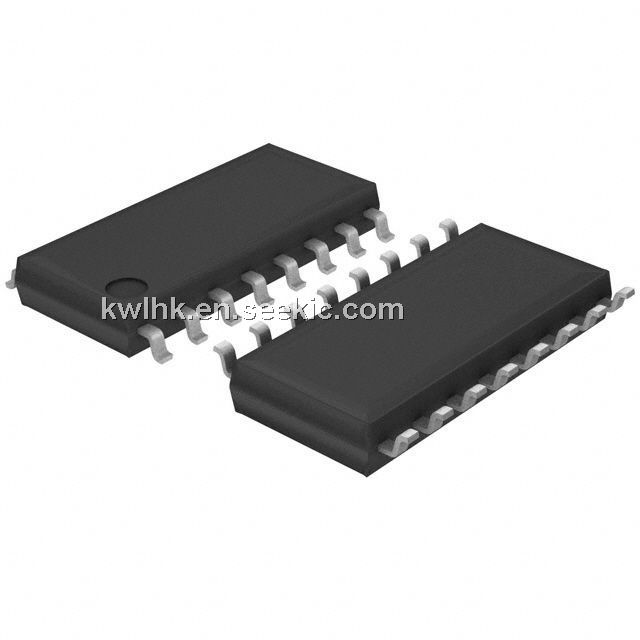

The SOMC1601-103G is a thick film resistor.
Parametrics
S1A/1T absolute maximum ratings: (1)Rated dissipation at 70 °C per element: 0.08 or 0.16 W; (2)Limiting element voltage: 50 V; (3)Voltage coefficient: <50 ppm/V;(4)Insulation voltage (1 min): 200 V; (5)Category temperature range: -55 to +150°C; (6)Insulation resistance: -; (7)TC tracking (- 55 °C to + 125 °C): 50 ppm/°C.
Features
S1A/1T features: (1)Isolated, bussed and dual terminator schematics available; (2)14, 16 or 20 terminal package; (3)Molded case construction; (4)Thick film resistive elements; (5)Reflow solderable; (6)Compatible with automatic surface mounting equipment; (7)Reduces total assembly costs; (8)For wave flow soldering contact factory; (9)Compliant to RoHS directive 2002/95/EC.

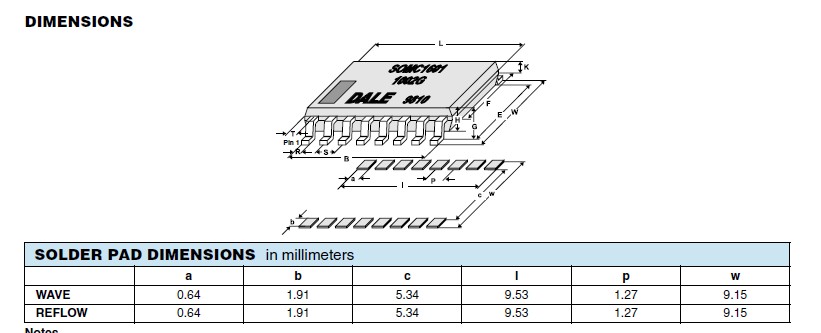

Diagrams
