Product Summary

The SP207ECA/TR is a +5V high performance RS232 transceiver.

Parametrics

SP207ECA/TR absolute maximum ratings: (1)Vcc: +6V; (2)V+: (Vcc-0.3V) to +13.2V; (3)V-: 13.2V; (4)Input Voltage TIN: -0.3 to (Vcc +0.3V); (5)Input Voltage RIN: ±30V; (6)Power Dissipation 24-pin SSOP (derate 11.2mW/°C above +70°C): 900mW; (7)Output Voltage Tout: (V+, +0.3V) to (V-, -0.3V); (8)Output Voltage Rout: -0.3V to (Vcc +0.3V).

Features

SP207ECA/TR features: (1)Single +5V Supply Operation; (2)0.1uF External Charge Pump Capacitors; (3)Typical 230kbps Transmission Rates; (4)Standard SOIC and SSOP Packages; (5)Lower Supply Current Than Competition (typical 3mA); (6)1uA Shutdown Mode; (7)WakeUp Feature in Shutdown Mode; (8)Tri–State Receiver Outputs; (9)Meets All EIA-232 and ITU V.28 Specifications.

Diagrams

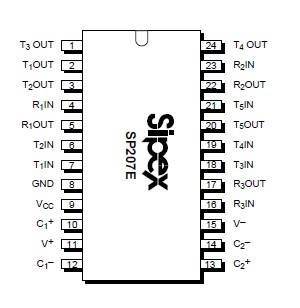

SP207ECA/TR pin connection
