Product Summary
The TL064CDT is a low power JFET quad operational amplifier. It features high slew rates, low input bias and offset currents, and low offset voltage temperature coefficient.
Parametrics
TL064CDT absolute maximum ratings: (1)Supply voltage: +/-18 V; (2)Input voltage: +/-15 V (3)Differential input voltage: +/-30 V; (4)Power dissipation: 680 mW; (5)Thermal resistance junction to ambient: 105 °C/W; (6)Thermal resistance junction to case: 31°C/W; (7)Operating free-air temperature range: -55 to +125°C; (8)Storage temperature range: -65 to +150 °C.
Features
TL064CDT features: (1)Very low power consumption: 200 μA; (2)Wide common-mode (up to VCC+) and differential voltage ranges; (3)Low input bias and offset currents; (4)Output short-circuit protection; (5)High input impedance JFET input stage; (6)Internal frequency compensation; (7)Latch up free operation; (8)High slew rate: 3.5 V/μs.

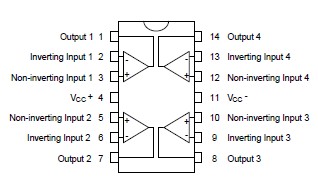

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

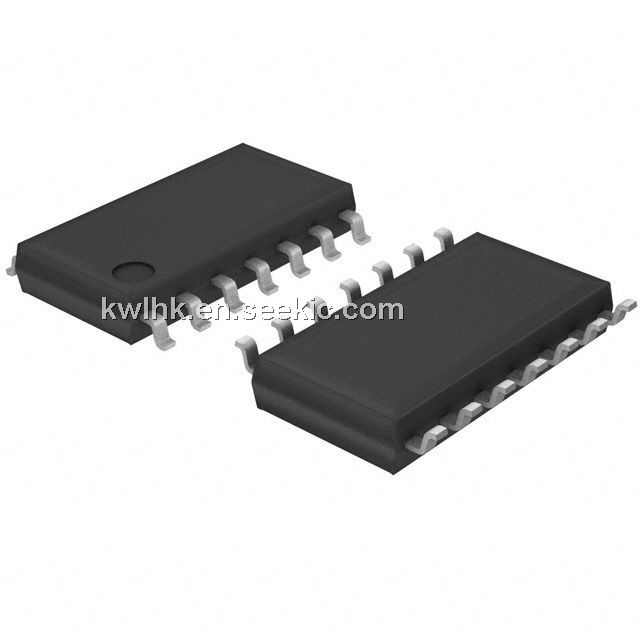

![]() TL064CDT |
![]() STMicroelectronics |
![]() Operational Amplifiers - Op Amps Quad Low Power JFET |
![]() Data Sheet |
![]()
|
|
||||||||||||
