Product Summary
The TLE4271-2G is a 5-V low-drop fixed voltage regulator. The device incorporates overvoltage protection and temperature protection that disables the circuit at overtemperature.
Parametrics
TLE4271-2G absolute maximum ratings: (1)Input Voltage: -42 to +42 V; (2)Input current: internally limited; (3)Inhibit Voltage: -42 to +42 V; (4)Inhibit current: internally limited; (5)Reset Output Voltage: -0.3 to 42 V; (6)Reset Output current: internally limited; (7)Junction temperature: 150°C; (8)Storage temperature range: -50 to +150 °C.
Features
TLE4271-2G features: (1)Output voltage tolerance≤+/- 2%; (2)Low-drop voltage; (3)Integrated overtemperature protection; (4)Reverse polarity protection; (5)Input voltage up to 42 V; (6)Overvoltage protection up to 65 V (≤400 ms); (7)Short-circuit proof; (8)Suitable for use in automotive electronics; (9)Wide temperature range; (10)Adjustable reset and watchdog time.

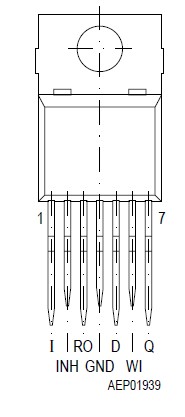

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

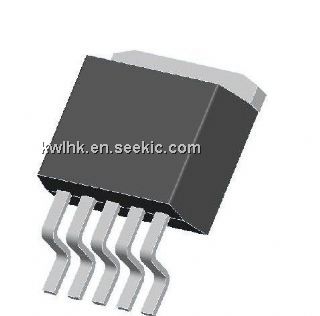

![]() TLE4271-2G |
![]() Infineon Technologies |
![]() Low Dropout (LDO) Regulators LDO FIXED 5.0V 600mA |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() TLE4271-2GK |
![]() Infineon Technologies |
![]() Low Dropout (LDO) Regulators LDO Fixed 5.0V 600mA |
![]() Data Sheet |
![]() Negotiable |
|
