Product Summary

The TP2050TR is a stereo power stage capable of 50W continuous average power per channel, Class-T Digital Audio Power Amplifier using Tripath’s proprietary Digital Power ProcessingTM technology. The TP2050TR can be coupled with a Class-T controller such as TC2000 or TC2001 to produce a high quality stereo amplifier. Also the TP2050TR can be used in (1)5.1-Channel DVD; (2)Mini/Micro Component Systems; (3)Home Theater; (4)Stereo applications (6Ω / 8Ω); (5)Mono applications (4Ω).

Parametrics

TP2050TR absolute maximum ratings: (1)Supply Voltage: 40 V; (2)Input Logic Level: 5.5 V; (3)Operating Free-air Temperature Range: 0 to 70 °C; (4)TSTORE Storage Temperature Range: -40 to 150 °C; (5)TJMAX Maximum Junction Temperature: 150 °C; (6)ESDHB ESD Susceptibility–Human Body Model, all pins 2000 V.

Features

TP2050TR features: (1)Class-T Architecture; (2)High Output power: 35W @ 6Ω, < 1% THD+N, 50W @ 8Ω, < 3% THD+N, 117W @ 4Ω, < 10.0% THD+N (paralleled outputs); (3)Audiophile Quality Sound; (4)0.007% THD+N @ 30W 8Ω; (5)0.005% THD+N @ 70W 4Ω (paralleled outputs); (6)High Efficiency: 92% @ 60W 8Ω, 85% @ 46W 6Ω, 89% @ 117W 4Ω (paral); (8)Dynamic Range >100 dB.

Diagrams

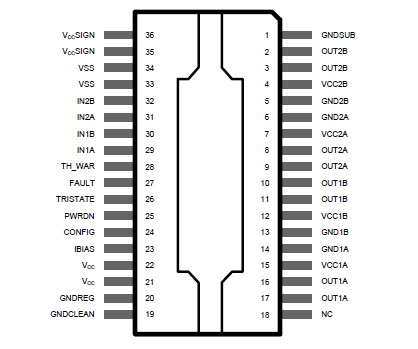

TP2050TR pin connection
