Product Summary

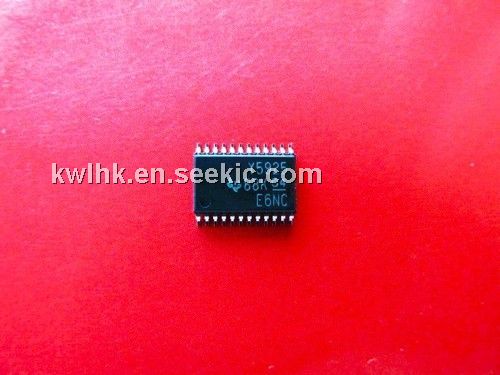

The Y5925 is a low-power 16-channel constant-current led sink driver. It can be used in (1)Gaming Machine / Entertainment; (2)LED Applications; (3)LED Display Systems; (4)Signs LED Lighting; (5)White Goods.

Parametrics

Y5925 absolute maximum ratings: (1)Supply voltage: 0 to 7 V; (2)Input voltage: –0.4 to VDD + 0.4 V; (3)Output voltage: -0.5 to 20 V; (4)Output current: 45 mA; (5)GND terminal current: 750 mA; (6)Free-air operating temperature range: -40 to 125 °C; (7)Operating junction temperature range: -40 to 150 °C; (8)Storage temperature range: -55 to 150 °C.

Features

Y5925 features: (1)16 Constant-Current Output Channels; (2)Constant Output Current Invariant to Load Voltage Change; (3)Constant Output Current Range: 3 mA to 45 mA; (4)Output Current Adjusted By External Resistor; (5)Fast Response of Output Current, OE (Min): 100 ns; (6)30-MHz Clock Frequency; (7)Schmitt-Trigger Inputs; (8)3.3-V to 5-V Supply Voltage; (9)Thermal Shutdown for Overtemperature Protection; (10)ESD Performance: 1-kV HBM.

Diagrams

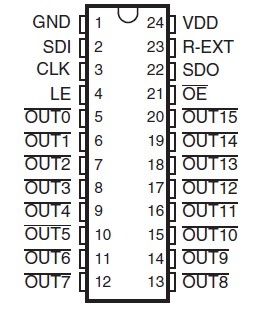

Y5925 pin connection
