Product Summary

The PC957L is an OPIC Photocoupler. Applications are (1)Programmable controller; (2)Inverter.

Parametrics

PC957L absolute maximum ratings: (1)Forward current IF: 25 mA; (2)Reverse voltage VR: 5 V; (3)Power dissipation P: 45 mW; (4)Supply voltage VCC: -0.5 to +30 V; (5)Output voltage VO: -0.5 to +20 V; (6)Output current IO: 8 mA; (7)Power dissipation PO: 100 mW; (8)Isolation voltage Viso(rms): 5.0 kV; (9)Operating temperature Topr: -55 to +100 °C; (10)Storage temperature Tstg: -55 to +125 °C; (11)Soldering temperature Tsol: 270 °C.

Features

PC957L features: (1)High instantaneous common mode rejection voltage (CMR:MIN. 15kV/μs); (2)High speed response (tPHL:MAX. 0.8μs , tPLH:MAX. 0.8μs); (3)Isolation voltage(Viso(rms): 5.0kV); (4)8-pin DIP package; (5)Flow soldering : 280°C for 6s or less; (6)Recognized by UL (file No. E64380)Under preparation for VDE standard.

Diagrams

PC957L pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

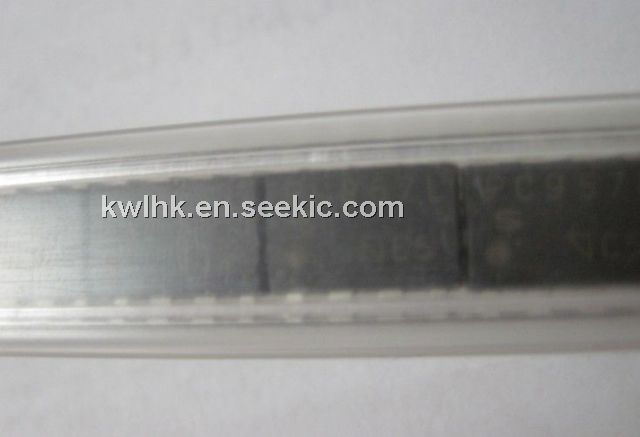

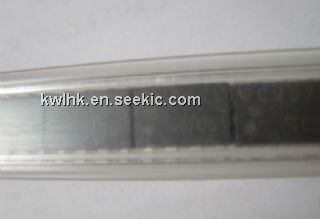

PC957L0NIP0F
PC957L0NIP0F

Sharp Microelectronics

High Speed Optocouplers SMT PC957L0NSZ0F

Data Sheet

0-1: $0.59
1-10: $0.56
10-100: $0.55
100-500: $0.52
PC957L0NSZ
PC957L0NSZ


PHOTOCOUPLER OPIC 8-DIP

Data Sheet

Negotiable
PC957L0YIP0F
PC957L0YIP0F

Sharp Microelectronics

High Speed Optocouplers VDE Approved PC957L0NiP0F

Data Sheet

0-1: $0.58
1-5: $0.54
5-500: $0.54
PC957L0YSZ
PC957L0YSZ


PHOTOCOUPLER OPIC 8-DIP

Data Sheet

0-1: $0.84
1-10: $0.73
10-25: $0.66
25-100: $0.60
100-500: $0.57
500-750: $0.56
750-1000: $0.55
1000-2500: $0.54
2500-5000: $0.53
PC957L0YSZ0F
PC957L0YSZ0F

Sharp Microelectronics

High Speed Optocouplers VDE Approved PC957L0NSZ0F

Data Sheet

0-1: $0.58
1-5: $0.54
PC957L0NSZ0F
PC957L0NSZ0F

Sharp Microelectronics

High Speed Optocouplers Photocoupler 1MbpsLinear Output

Data Sheet

Negotiable
