Product Summary

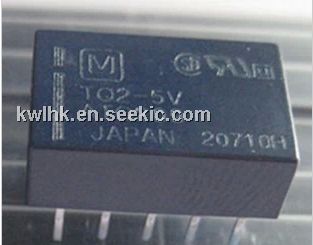

The TQ2-5V is a 15 dB low profile relay.

Parametrics

TQ2-5V absolute maximum ratings: (1)Contact Form: 2 Form C (DPDT-BM); (2)Coil Voltage: 5 VDC; (3)Coil Current: 28.1 mA; (4)Coil Type: Single Side Stable; (5)Power Consumption: 140 mW; (6)Contact Carry Current: 1 A; (7)Termination Style: Solder Terminal; (8)Isolation: 15 dB at 1 GHz; (9)Insertion Loss: 0.6 dB at 1 GHz; (10)Maximum Switching Current: 1 A; (11)Contact Rating: 1 A at 30 VDC / 500 mA at 125 VAC; (12)Packaging: Ammo Pack.

Features

TQ2-5V features: (1)High sensitivity: 2 Form C: 140 mW power consumption (single side stable type). 4 Form C: 280 mW power consumption (single side stable type); (2)Surge voltage withstand: 1500 V FCC Part 68; (3)Sealed construction allows automatic washing; (4)Self-clinching terminal also available; (5)M.B.B. contact types available.

Diagrams

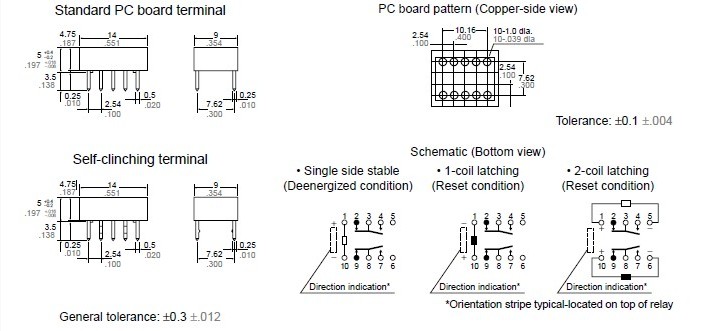

TQ2-5V pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TQ2-5V
TQ2-5V

Panasonic Electric Works

Low Signal Relays - PCB 1A 5VDC DPDT NON-LATCHING PCB

Data Sheet

0-1: $2.01
1-25: $1.80
25-50: $1.63
50-100: $1.37
TQ2-5V-3
TQ2-5V-3

Panasonic Electric Works

Low Signal Relays - PCB 2 Form A 5V 30VDC PCB Terminal

Data Sheet

0-1: $1.71
1-25: $1.54
25-50: $1.37
50-100: $1.23
