FSBB30CH60

FSBB30CH60, advanced smart power module, 450 V, 30 A, 103 W, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $30.00~50.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 50 :	50.00 / Piece
51 ~ 100 :	40.00 / Piece
101 ~ 200 :	30.00 / Piece

PartNumber:: FSBB30CH60

Brand:: Fairchild Semiconductor - Fairchild | D/C: 12+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-20

From Other Seller

Part Number:FSBB30CH60
US $30.00 - 50.00
Quantity:

piece

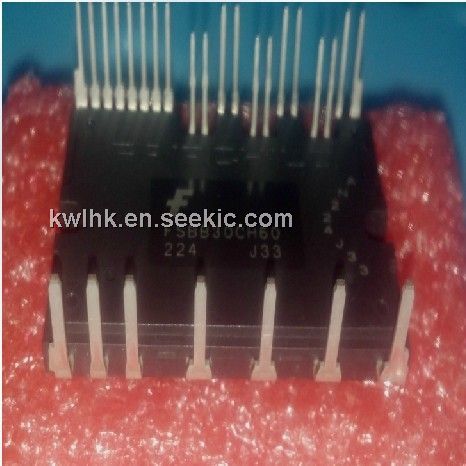

Product Summary

The FSBB30CH60 is an advanced smart power module (SPM) that Fairchild has newly developed and designed to provide very compact and high performance ac motor drives mainly targeting lowpower inverter-driven application like air conditioner and washing machine. The FSBB30CH60 combines optimized circuit protection and drive matched to low-loss IGBTs. System reliability is further enhanced by the integrated under-voltage lock-out and shortcircuit protection. The FSBB30CH60 provides optocoupler- less single-supply IGBT gate driving capability that further reduce the overall size of the inverter system design. Each phase current of inverter can be monitored separately due to the divided negative dc terminals. Applications are (1)AC 100V ~ 253V three-phase inverter drive for small power ac motor drives; (2)Home appliances applications like air conditioner and washing machine.

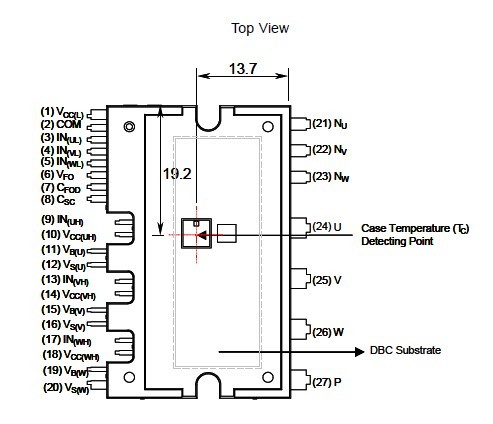

Parametrics

FSBB30CH60 absolute maximum ratings: (1)VPN Supply Voltage Applied between P- NU, NV, NW: 450 V; (2)VPN(Surge)Supply Voltage (Surge)Applied between P- NU, NV, NW: 500 V; (3)VCES Collector-emitter Voltage: 600 V; (4)± IC Each IGBT Collector Current TC = 25°C: 30 A; (5)± ICP Each IGBT Collector Current (Peak)TC = 25°C, Under 1ms Pulse Width: 45 A; (6)PC Collector Dissipation TC = 25°C per One Chip: 103 W; (7)TJ Operating Junction Temperature: -20 ~ 125 °C.

Features

FSBB30CH60 features: (1)UL Certified No.E209204(SPM27-EA package); (2)Very low thermal resistance due to using DBC; (3)600V-30A 3-phase IGBT inverter bridge including control ICs for gate driving and protection; (4)Divided negative dc-link terminals for inverter current sensing applications; (5)Single-grounded power supply due to built-in HVIC; (6)Isolation rating of 2500Vrms/min.
